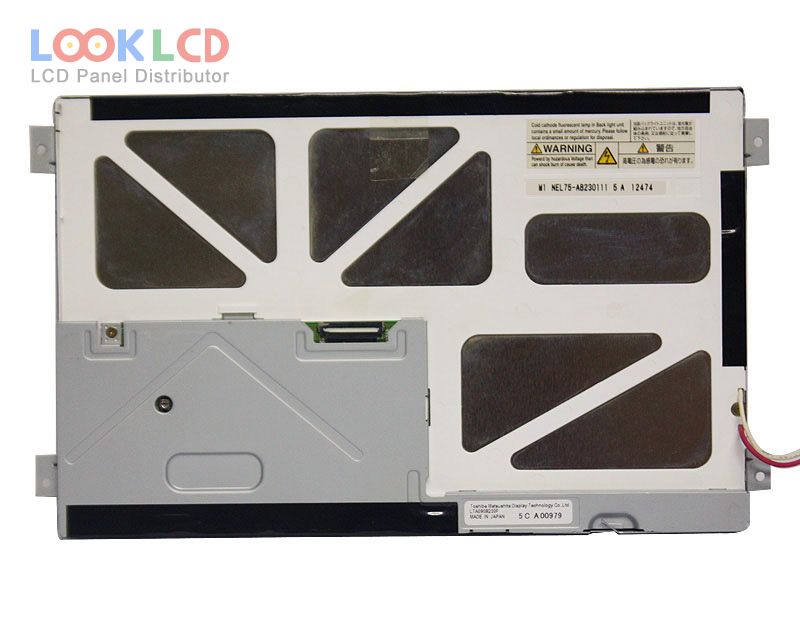

| PartNumber | LTA090B230F |
| Brand | TOSHIBA |
| Size | 9.0 |
| Application | IA |
| Resolution | 536(RGB)×328 |
| Composition | LCM |
| Brightness | 480 cd/m² (Typ.) |
| CR | 250:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | TTL |
| Panel Brand | Toshiba Matsushita |
| Panel Model | LTA090B230F |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 9.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 196.18×120.05 mm |
| Outline | 212.2×135.2 mm |
| Surface | Clear |
| Contrast Ratio | 250:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 70/40 (Max.)(Tr/Td) |
| Viewing Angle | 80/80/45/80 (Typ.)(CR≥10)(L/R/U/D) |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 30 pins |
| Input Voltage | 3.3V (Typ.) |
