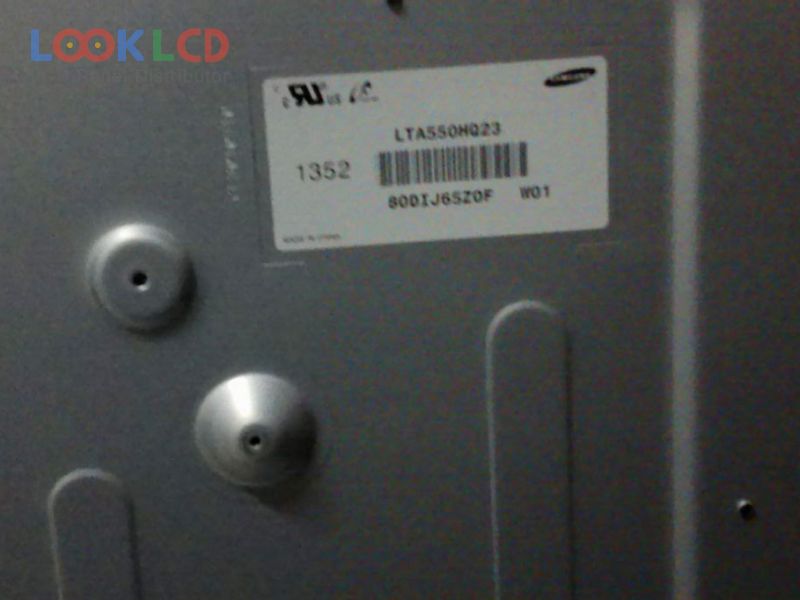

| PartNumber | LTA550HQ23-W |
| Brand | Samsung |
| Size | 55 |
| Application | LCTV |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 360 cd/m² (Typ.) |
| CR | 4000:1 |
| Colors | 16.7M/1.07B |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTA550HQ23-W |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 55 inch |
| Display Mode | SVA, Normally Black, Transmissive |
| Active Area | 1209.6×680.4 mm |
| Outline | 1229.4×704.2 mm |
| Surface | Antiglare (Haze 2.3%), Hard coating (2H) |
| Contrast Ratio | 4000:1 (Typ.) |
| Display Colors | 16.7M/1.07B (8-bit / 8-bit + Dithering), CIE193170% |
| Response Time | 8 (Typ.)(G to G) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 8/10-bit) |
| Input Voltage | 12.0V (Typ.) |
