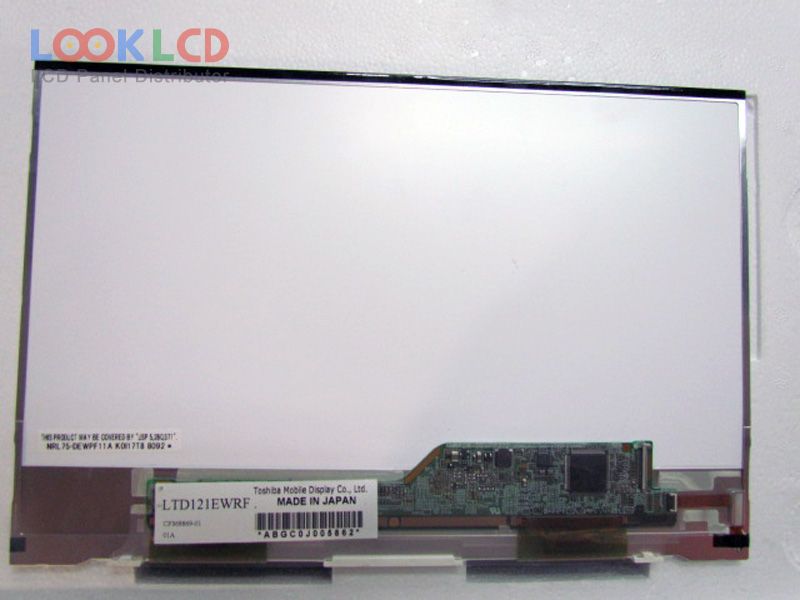

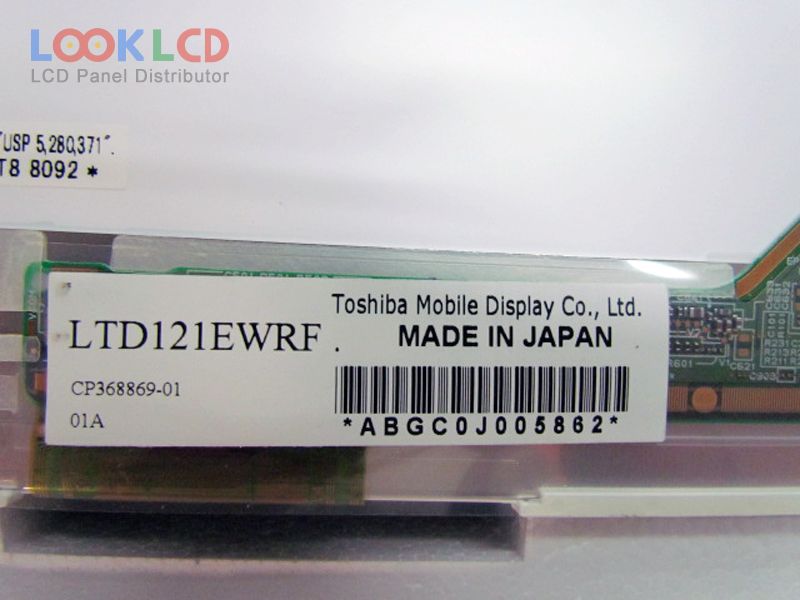

| PartNumber | LTD121EWRF |
| Brand | TOSHIBA |
| Size | 12.1 |
| Application | NBPC |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 250:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | Toshiba Mobile Display |
| Panel Model | LTD121EWRF |
| Panel Type | LTPS TFT-LCD , LCM |
| Panel Size | 12.1 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 261.12×163.2 mm |
| Outline | 268.1×180.2×4.27 mm |
| Surface | Antiglare |
| Contrast Ratio | 250:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 80 (Max.)(Tr+Td) |
| Viewing Angle | |
| Frequency | 60Hz |
| Lamp Type | 6 stringsWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Voltage | 2.5V (Typ.) |
