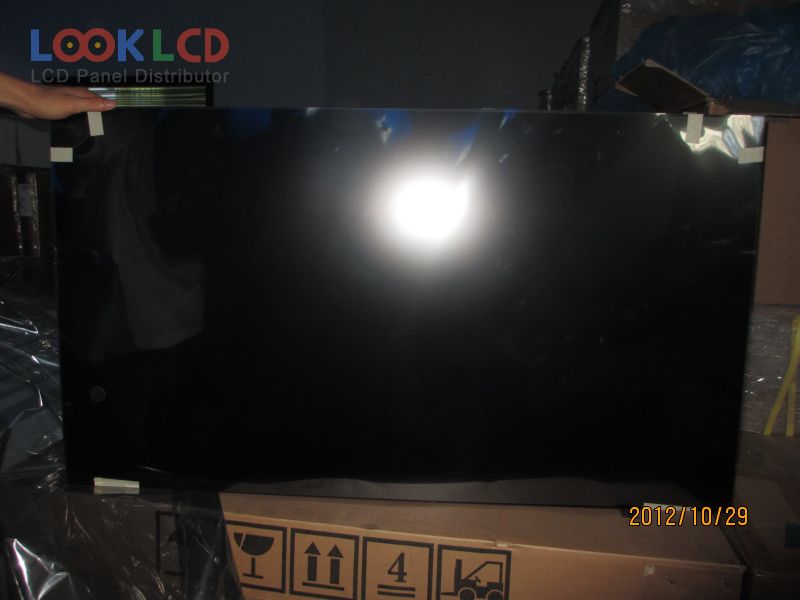

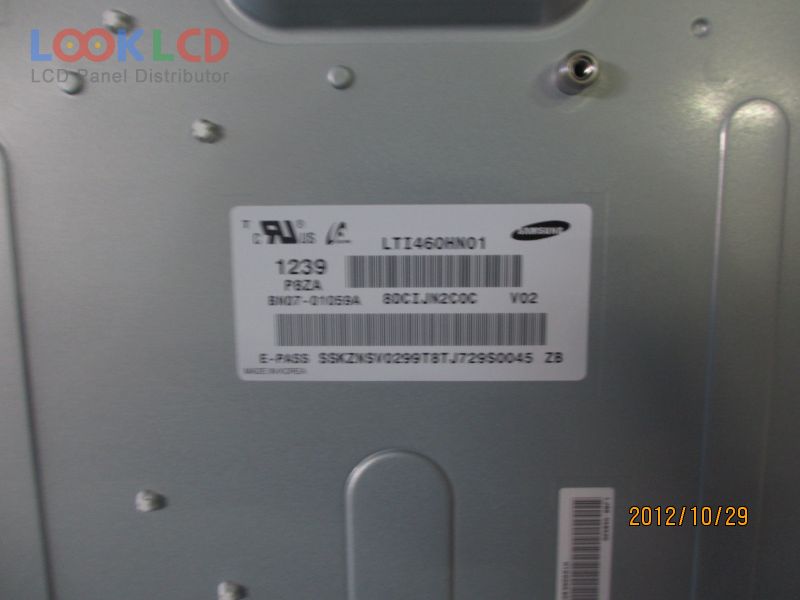

| PartNumber | LTI460HN01 |
| Brand | Samsung |
| Size | 46 |
| Application | DID |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 700 cd/m² (Typ.) |
| CR | 3000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTI460HN01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 46 inch |
| Display Mode | SVA, Normally Black, Transmissive |
| Active Area | 1018.08×572.67 mm |
| Outline | 1023.78×578.37×65.1 mm, Videowall Seam 5.7 mm |
| Surface | Antiglare (Haze 44%) |
| Contrast Ratio | 3000:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193172% |
| Response Time | 8.0 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pins |
| Input Voltage | 12.0V (Typ.) |
