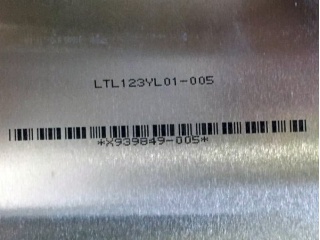

| PartNumber | LTL123YL01-005 |
| Brand | SAMSUNG |
| Size | 12.3 |
| Application | Pad & Tablet |
| Resolution | 2736(RGB)×1824, 267PPI |
| Composition | Oxide TFT-LCD , LCM |
| Brightness | - |
| CR | 1400:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | |
| Panel Brand | SAMSUNG |
| Panel Size | 12.3" |
| Display Area | 259.783(W)×173.189(H) mm |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M |
| Frequency | 60Hz |
| Panel Weight | - |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Panel Model | LTL123YL01-005 |
| Panel Type | Oxide TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Contrast Ratio | 1400:1 (Typ.) (TM) |
| Display Mode | PLS, Normally Black, Transmissive |
| Response Time | - |
| Lamp Type | WLED , 12K hours |
| Touch Screen | Without |
| AV123Z7M-N11 | BOE | 12.3 | 1920×720 |
| C123HAN01.0 | AUO | 12.3 | 1920×720 |
| C123HAN01.1 | AUO | 12.3 | 1920×720 |
| LA123WF1-SL01 | LG Display | 12.3 | 1920×720 |
| LQ123K1LG03 | SHARP | 12.3 | 1280×480 |
| LQ123K3LG01 | SHARP | 12.3 | 1280×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
| TJ123NP01BA | Innolux | 12.3 | 1280×480 |
| TJ123NP01CA | Innolux | 12.3 | 1280×480 |
| TX31D200VM0BAA | KOE | 12.3 | 1280×480 |
