| PartNumber | LTN133YL06-H01 |
| Brand | SAMSUNG |
| Size | 13.3 |
| Application | Laptop |
| Resolution | 3200(RG/BW)×1800, Quad-HD+, 226PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 400:1 |
| Colors | 16.7M |
| Backlight | 9S6P |
| Interface | eDP |
| Panel Brand | SAMSUNG |

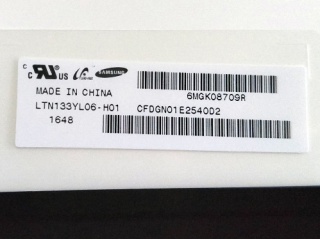

| Panel Model | LTN133YL06-H01 (SDC415A) |
| Panel Size | 13.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RG/BW LCD PenTile |
| Display Area | 293.44(W)×165.06(H) mm |
| Bezel Opening | - |
| Outline Size | 306.15(W)×194.31(H) ×2.8(D) mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | PLS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 16 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 9S6P WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Signal Interface | eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
