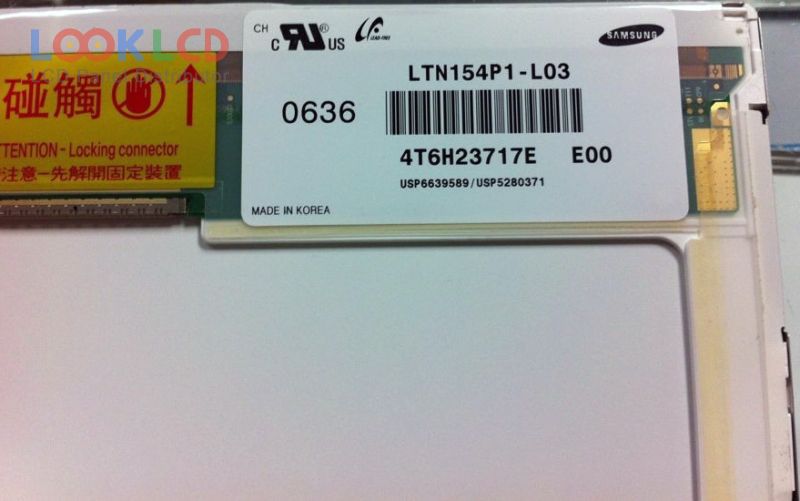

| PartNumber | LTN154P1-L03 |
| Brand | Samsung |
| Size | 15.4 |
| Application | NBPC |
| Resolution | 1680(RGB)×1050 , WSXGA+ |
| Composition | LCM |
| Brightness | 185 cd/m² (Typ.) |
| CR | 300:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTN154P1-L03 2 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 331.38×207.11 mm |
| Outline | 344×222×6.5 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 300:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193145% |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 65/65/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 6-bit), 30 pins |
| Input Voltage | 3.3V (Typ.) |
| LTN154AT08-001 | Samsung | 15.4 | 1280×800 |
| LTN154AT13-701 | Samsung | 15.4 | 1280×800 |
| LTN154BT02-004 | Samsung | 15.4 | 1440×900 |
| LTN154BT05-D01 | Samsung | 15.4 | 1440×900 |
| LTN154P3-L02 | Samsung | 15.4 | 1680×1050 |
| LTN154X1-L03 | Samsung | 15.4 | 1280×800 |
| LTN154X3-L02 | Samsung | 15.4 | 1280×800 |
| LTN154X3-L03 | Samsung | 15.4 | 1280×800 |
| LTN154X3-L06-6 | Samsung | 15.4 | 1280×800 |
| LTN154XB-L01 | Samsung | 15.4 | 1280×800 |
| LP133X7-F2IB | LG Display | 13.3 | 1024×768 |
| LP140WH2-TLN1 | LG Display | 14.0 | 1366×768 |
| LP154W01-TLA3 | LG Display | 15.4 | 1280×800 |
| LTD121ECBP | TOSHIBA | 12.1 | 1024×768 |
| LTN156AT17-D01 | Samsung | 15.6 | 1366×768 |
| LTN160HT01-A02 | Samsung | 16.0 | 1920×1080 |
| N101BGE-L31 | Innolux | 10.1 | 1366×768 |
| N156B6-L07 | Innolux | 15.6 | 1366×768 |
| N156BGE-E11 | Innolux | 15.6 | 1366×768 |
| NV133FHM-N52 | BOE | 13.3 | 1920×1080 |
