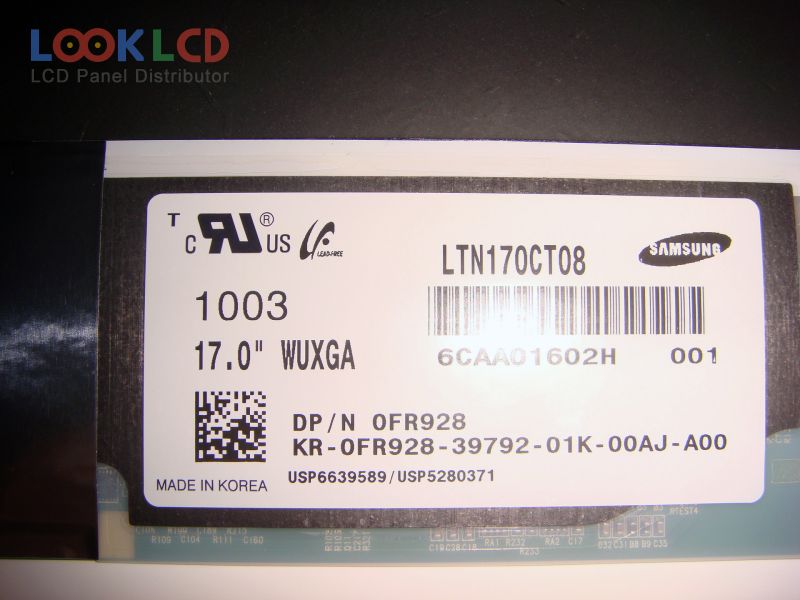

| PartNumber | LTN170CT08-001 |
| Brand | Samsung |
| Size | 17.0 |
| Application | NBPC |
| Resolution | 1920(RGB)×1200 , WUXGA |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 400:1 |
| Colors | 16.7M |
| Backlight | RGB LED |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTN170CT08-001 1 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 17.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 367.2×229.5 mm |
| Outline | 382.2×247.5×6.5 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Antiglare (Haze 25%), Hard coating (4H) |
| Contrast Ratio | 400:1 (Min.) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 65/65/55/55 (Min.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | RGB LEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 8-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| B156XW03 V0 | AUO | 15.6 | 1366×768 |
| HB125WX1-100 | BOE | 12.5 | 1366×768 |
| LP133WH2-SPA1 | LG Display | 13.3 | 1366×768 |
| LP156WH1-TLA3 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TLAA | LG Display | 15.6 | 1366×768 |
| LTD121KX6B | TOSHIBA | 12.1 | 1280×800 |
| LTN150X5-L02 | Samsung | 15.0 | 1024×768 |
| LTN154X3-L01 | Samsung | 15.4 | 1280×800 |
| N141I6-D11 | Innolux | 14.1 | 1280×800 |
| N150P2-L06 | IDTech | 15.0 | 1400×1050 |
