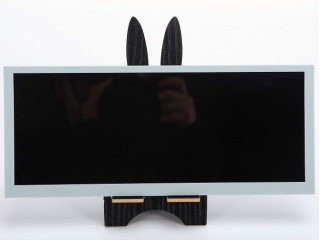

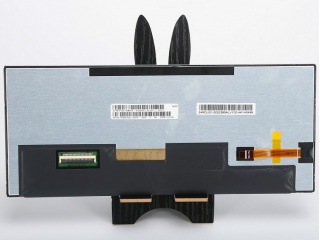

| PartNumber | M102AWF2 R1 |
| Brand | IVO |
| Size | 10.3 |
| Application | Automotive Display |
| Resolution | 1920×720 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Model | M102AWF2 R1 |
| Diagonal Size | 10.3 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×720 200PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 243.65(H)×91.37(V) mm |
| Outline Dim. | 262.04(H)×110.3(V) ×12.2(D) mm |
| Bezel Area | 245.65(H)×93.66(V) mm |
| Treatment | Hard coating (3H) |
| Luminance | 800 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | WLED [8S3P] , 10K hours , W/O Driver |
| Weight | 380g (Max.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 50 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²) |
