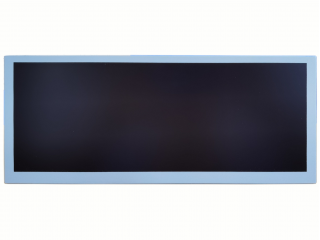

| PartNumber | M102AWF2 R2 |
| Brand | IVO |
| Size | 10.3 |
| Application | Automotive Display |
| Resolution | 1920(RGB)×720, 200PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 800 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | 8S3P |
| Interface | LVDS |
| Panel Brand | IVO |
| Panel Model | M102AWF2 R2 |
| Panel Size | 10.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 243.65(W)×91.37(H) mm |
| Bezel Opening | 245.65(W)×93.66(H) mm |
| Outline Size | 262.04(W)×110.3(H) ×16(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 20 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 75% NTSC |
| Lamp Type | 8S3P WLED , 10K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 380g (Max.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 50 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²) |
