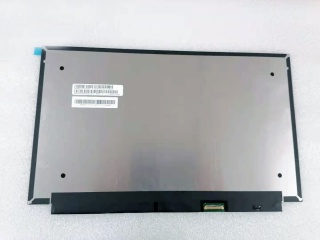

| PartNumber | M133NWFC R5 |
| Brand | IVO |
| Size | 13.3 |
| Application | Laptop |
| Resolution | 1920×1080 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | - |
| CR | 600:1 |
| Colors | 16.7M |
| Backlight | WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Manufacturer | IVO |
| Screen Size | 13.3 inch |
| Pixel Number | 1920(RGB)×1080 (FHD) 166PPI |
| Active Area(mm) | 293.76 × 165.24 (H×V) |
| Luminance | - |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Refresh Rate | 60Hz |
| Signal Type | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Model Name | M133NWFC R5 |
| Screen Type | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 300.56 × 187.87 × 2.4 (H×V×D) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Work Mode | IPS, Normally Black, Transmissive |
| Used for | Laptop |
| Touchscreen | Without |
