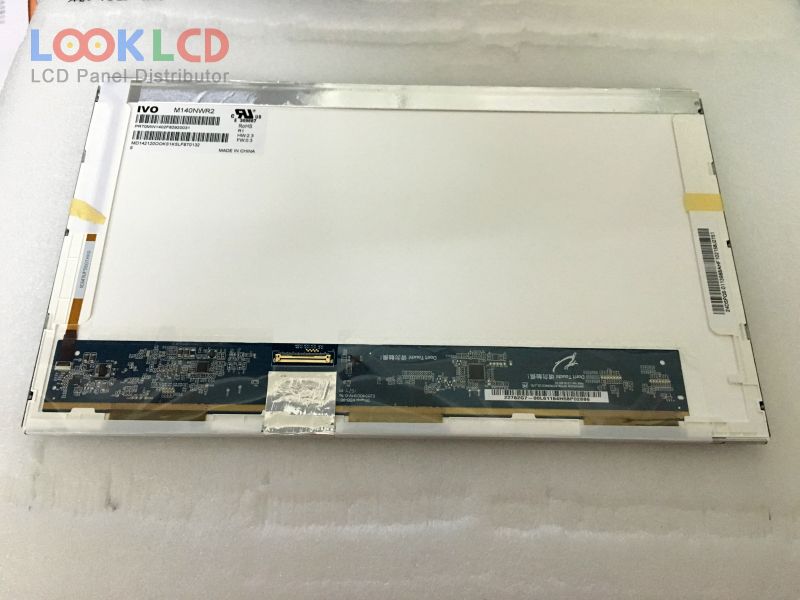

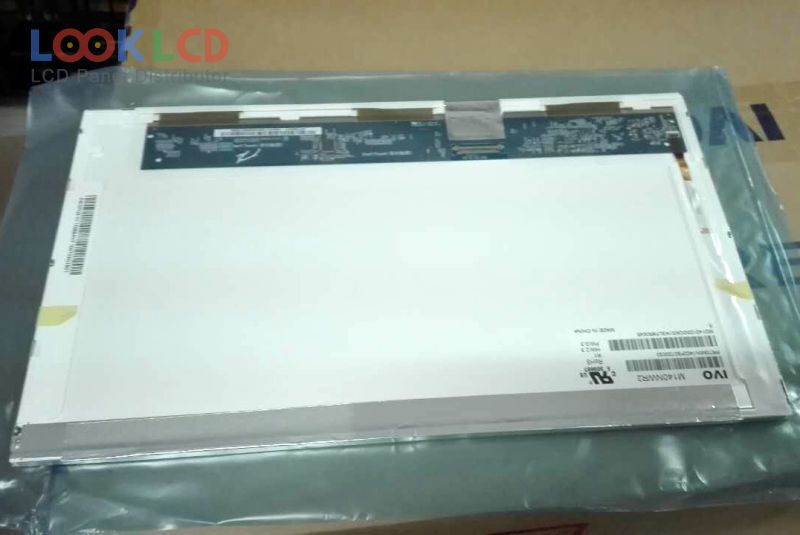

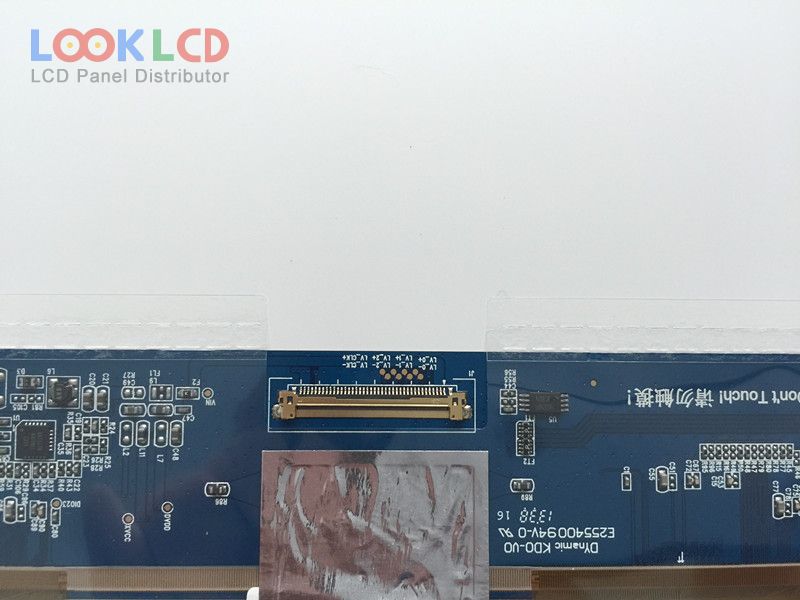

| PartNumber | M140NWR2 R1 |
| Brand | IVO |
| Size | 14.0 |
| Application | NBPC |
| Resolution | 1366(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | IVO |
| Panel Model | M140NWR2 R1 1 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 14.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 309.399×173.952 mm |
| Outline | 323.5×192×5.2 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Glare (Haze 0%), Hard coating |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193145% |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| B101EW01 V1 | AUO | 10.1 | 1280×720 |
| B121EW10 V1 | AUO | 12.1 | 1280×800 |
| LP140WH2-TLT1 | LG Display | 14.0 | 1366×768 |
| LT121SL-105 | Samsung | 12.1 | 800×600 |
| LTN121AT07-L02 | Samsung | 12.1 | 1280×800 |
| LTN121XL01-N03 | Samsung | 12.1 | 1024×768 |
| LTN141X8-L00 | Samsung | 14.1 | 1024×768 |
| LTN150PG-L03 | Samsung | 15.0 | 1400×1050 |
| LTN170WX-L06 | Samsung | 17.0 | 1440×900 |
| TX38D88VC1GAA | KOE | 15.0 | 1024×768 |
