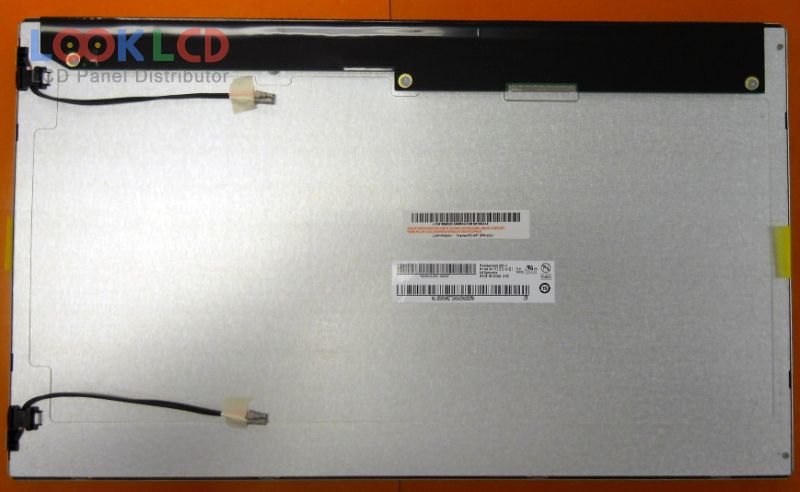

| PartNumber | M185XW01 V4 |
| Brand | AUO |
| Size | 18.5 |
| Application | DMPC |
| Resolution | 1366(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | AUO |
| Panel Model | M185XW01 V4 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 18.5 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 409.8×230.4 mm |
| Outline | 430.37×254.6×16.5 mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Response Time | 3.6/1.4 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
| M185XTN01.0 | AUO | 18.5 | 1366×768 |
| M185XTN01.2 | AUO | 18.5 | 1366×768 |
| M185XTN01.3 | AUO | 18.5 | 1366×768 |
| M185XW01 V1 | AUO | 18.5 | 1366×768 |
| M185XW01 V2 | AUO | 18.5 | 1366×768 |
| M185XW01 V3 | AUO | 18.5 | 1366×768 |
| M185XW01 V4 | AUO | 18.5 | 1366×768 |
| M185XW01 V5 | AUO | 18.5 | 1366×768 |
| M185XW01 V8 | AUO | 18.5 | 1366×768 |
| M185XW01 VF | AUO | 18.5 | 1366×768 |
| LM215WF3-SDD1 | LG Display | 21.5 | 1920×1080 |
| LM215WF4-TLA3 | LG Display | 21.5 | 1920×1080 |
| LM238WF2-SSK1 | LG Display | 23.8 | 1920×1080 |
| LM270WF7-SSB1 | LG Display | 27.0 | 1920×1080 |
| LTM200KT01 | Samsung | 20.0 | 1600×900 |
| LTM213U4-L01 | Samsung | 21.3 | 1600×1200 |
| LTM213U6-L01 | Samsung | 21.3 | 1600×1200 |
| LTM270HL02 | Samsung | 27.0 | 1920×1080 |
| M150X3-T05 | Innolux | 15.0 | 1024×768 |
| M170ETN01.0 | AUO | 17.0 | 1280×1024 |
