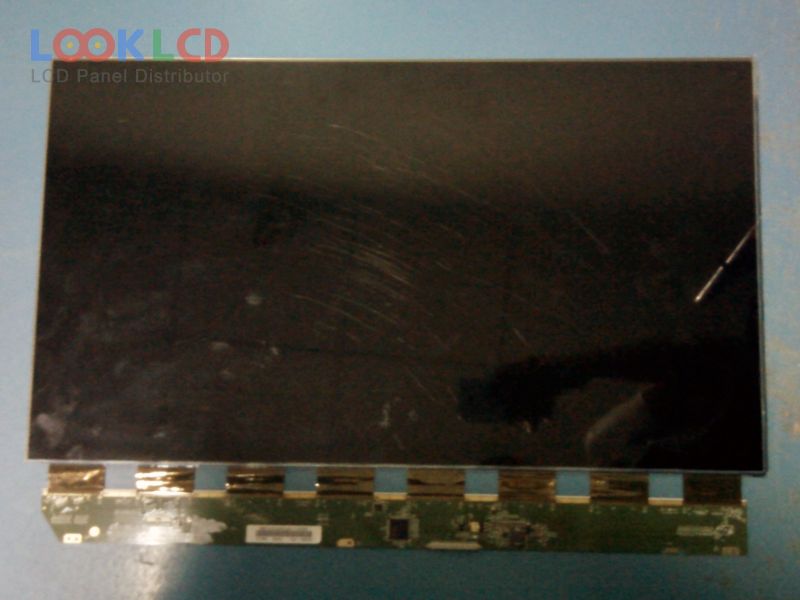

| PartNumber | M236H1-P01 |
| Brand | Innolux |
| Size | 23.6 |
| Application | DMPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | CELL |
| Brightness | 0 |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | No B/L |
| Interface | LVDS |
| Panel Brand | CMO |
| Panel Model | M236H1-P01 |
| Panel Type | a-Si TFT-LCD , CELL |
| Panel Size | 23.6 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 521.28×293.22 mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Transmissivity | 5.25% (Typ.)(with Polarizer) |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
