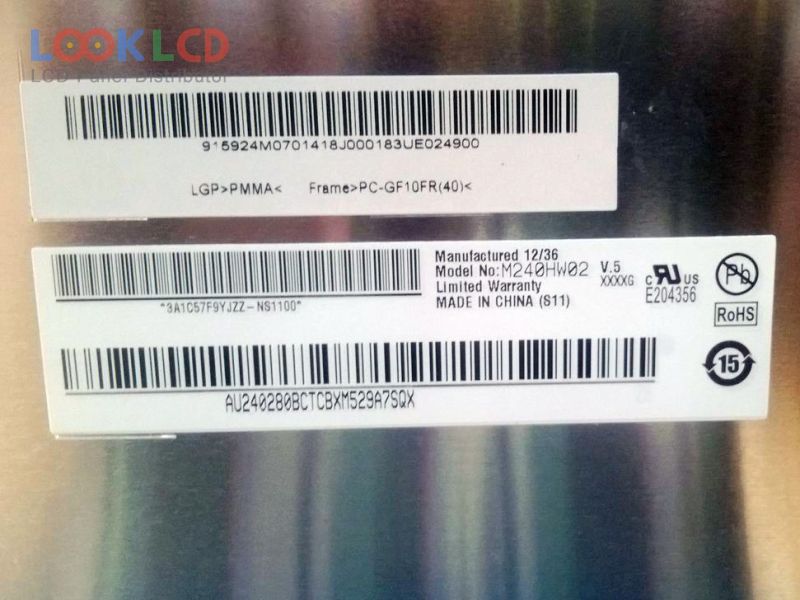

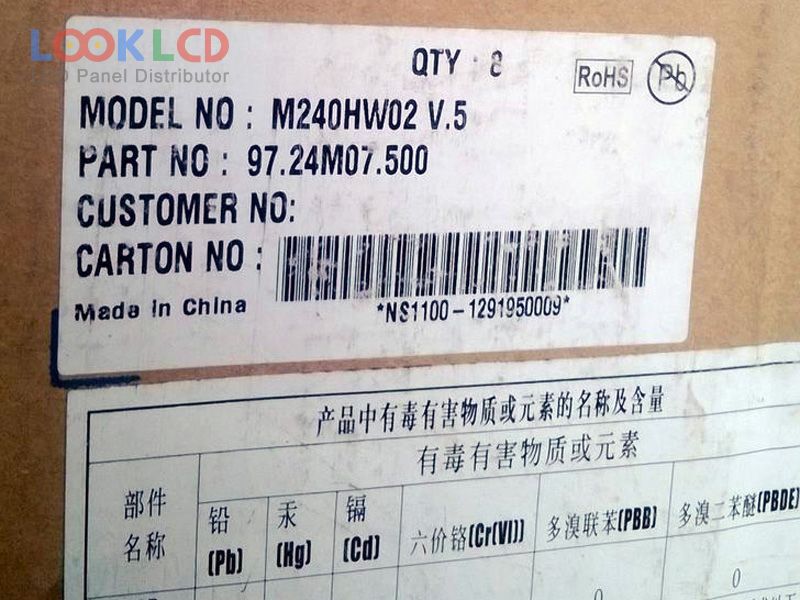

| PartNumber | M240HW02 V5 |
| Brand | AUO |
| Size | 24.0 |
| Application | DMPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 5000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | AUO |
| Panel Model | M240HW02 V5 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 24.0 inch |
| Display Mode | VA, Normally Black, Transmissive |
| Active Area | 531.36×298.89 mm |
| Outline | 556×323.2 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 5000:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193172% |
| Response Time | 7/5 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 120Hz |
| Lamp Type | 20S4P×2CNWLEDWithout Driver |
| Signal Interface | LVDS (4 ch, 8-bit), 66 pins |
| Input Voltage | 5.0V (Typ.) |
