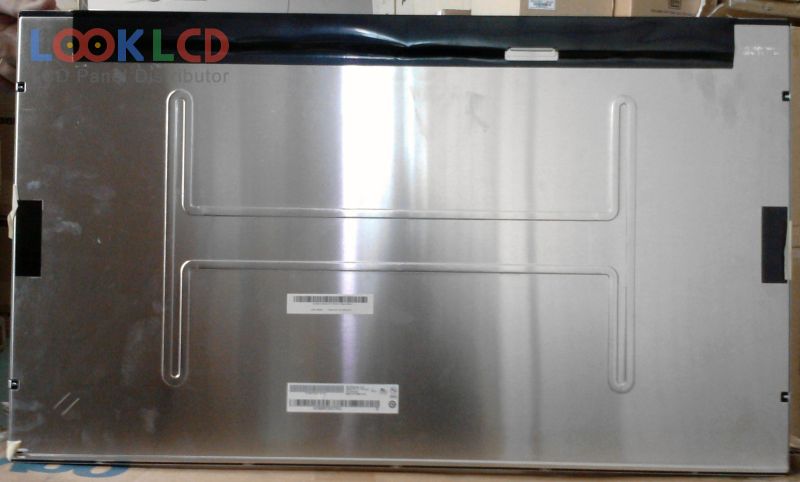

| PartNumber | M270HW02 V1 |
| Brand | AUO |
| Size | 27.0 |
| Application | DMPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 5000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | AUO |
| Panel Model | M270HW02 V1 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 27.0 inch |
| Display Mode | MVA, Normally Black, Transmissive |
| Active Area | 597.6×336.15 mm |
| Outline | 630×368.2×12 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 5000:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193172% |
| Response Time | 7/5 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 18S4PWLEDWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
