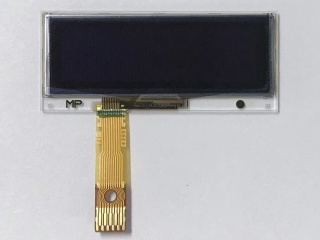

| PartNumber | MXS8499 |
| Brand | Soar |
| Size | 0.93 |
| Application | Wearable |
| Resolution | 128×36 |
| Composition | PM-OLED , OLED |
| Brightness | |
| CR | - |
| Colors | Mono(White) |
| Backlight | self |
| Interface | SPI, |
| Diagonal Size | 0.93 inch |
| Pixel Format | 128×36 143PPI |
| Active Area | 22.626(H)×6.342(V) mm |
| Luminance | 400 cd/m² (Typ.) |
| View Direction | - |
| Viewing Angle | - |
| Support Color | Mono(White) |
| Weight | 0.73g (Typ.) |
| Frame Rate | - |
| Interface Type | SPI, I²C , 11 pins FPC |
| Power Supply | 1.8/15.0V (Typ.)(VDD/VCC) |
| Model | MXS8499 |
| Type | PM-OLED , OLED |
| Configuration | Rectangle |
| Outline Dim. | 27.6(H)×11.6(V) mm |
| Contrast Ratio | - |
| Response Time | - |
| Operating Mode | - |
| Light Source | self , 16K hours |
| Designed For | Wearable |
| Touch Panel | Without |
