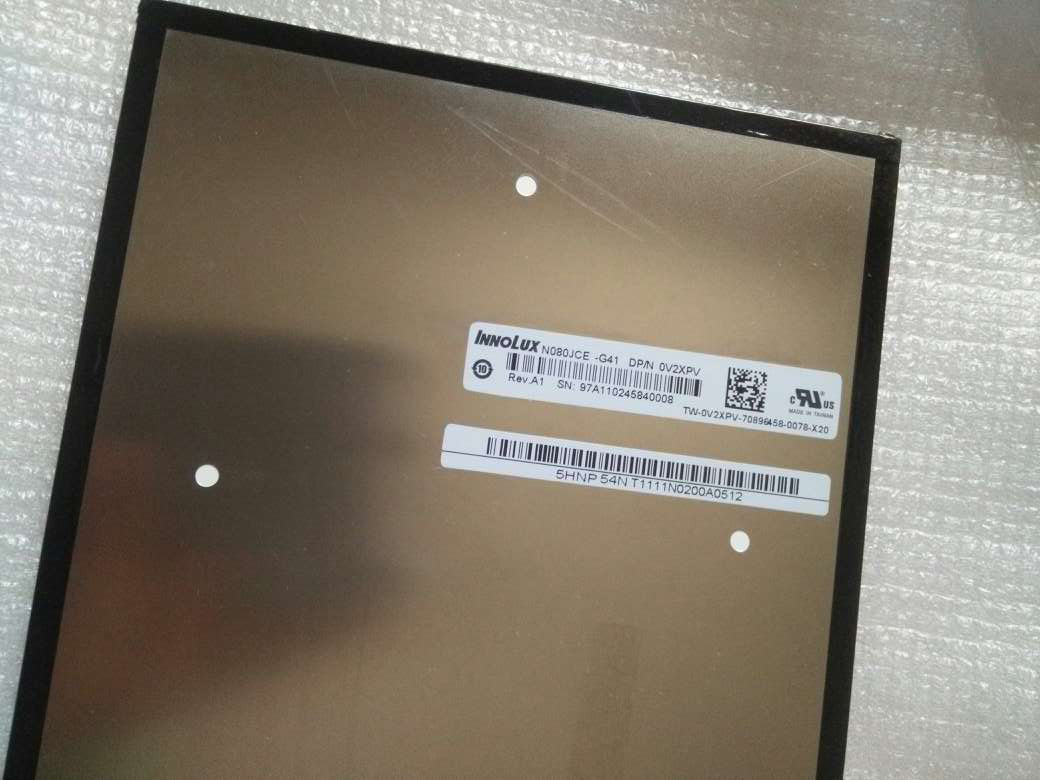

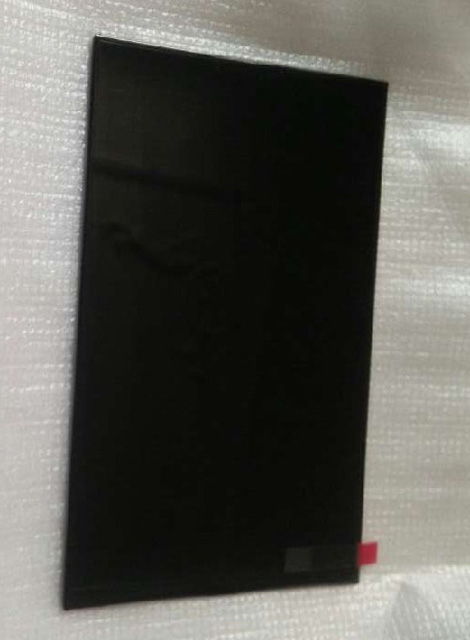

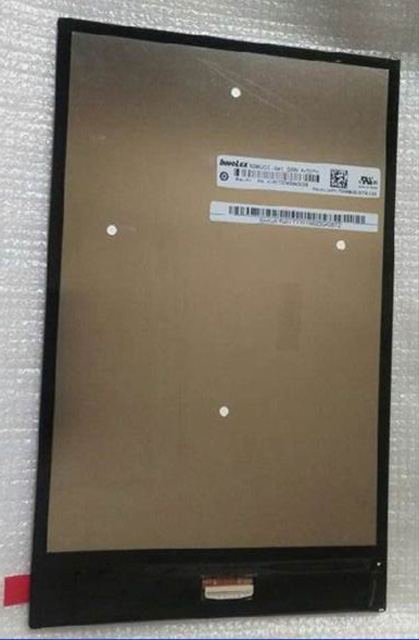

| PartNumber | N080JCE-G41 Rev.A1 |
| Brand | Innolux |
| Size | 8.0 |
| Application | Pad & Tablet |
| Resolution | 1200(RGB)×1920, WUXGA, 283PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 400 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | MIPI |
| Panel Brand | Innolux |
| Panel Model | N080JCE-G41 Rev.A1 |
| Panel Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 107.64(W)×172.224(H) mm |
| Bezel Opening | - |
| Outline Size | 114.6(W)×184.6(H) ×3.65(D) mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AAS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 60% NTSC |
| Lamp Type | WLED , 15K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 80.0g (Max.) |
| Signal Interface | MIPI (4 data lanes) , 45 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| A080SN01 V5 | AUO | 8.0 | 800×600 |
| BP080WX1-100 | BOE | 8.0 | 1280×800 |
| EJ080NA-04A | Innolux | 8.0 | 1024×768 |
| HJ080IA-01E | Innolux | 8.0 | 1024×768 |
| LB080WV3-A3 | LG Display | 8.0 | 800×480 |
| LQ080T3AG01 | SHARP | 8.0 | 480×234 |
| LQ080Y5DG03 | SHARP | 8.0 | 800×480 |
| LQ080Y5DR01 | SHARP | 8.0 | 800×480 |
| N080JCE-G41 | Innolux | 8.0 | 1200×1920 |
| TV080X0M-NS0 | BOE | 8.0 | 768×1024 |
