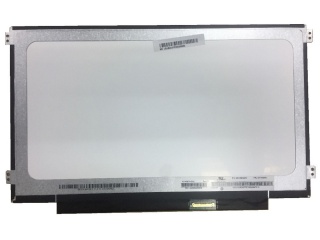

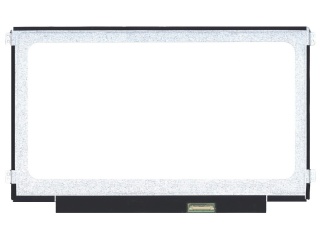

| PartNumber | N116BCA-EA1 |
| Brand | Innolux |
| Size | 11.6 |
| Application | Laptop Industrial |
| Resolution | 1366(RGB)×768, WXGA, 135PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 262K |
| Backlight | 10S2P |
| Interface | eDP |
| Panel Brand | Innolux |
| Panel Size | 11.6" |
| Display Area | 256.125(W)×144(H) mm |
| Outline Size | 278(W)×168(H) ×3(D) mm |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 262K 45% NTSC |
| Frequency | 60Hz |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Signal Interface | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Panel Model | N116BCA-EA1 (CMN1138) |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | AAS, Normally Black, Transmissive |
| Response Time | 14/11 (Typ.)(Tr/Td) |
| Lamp Type | 10S2P WLED , 15K hours , With LED Driver |
| Touch Screen | Without |
