| PartNumber | N116HSE-EA2 |
| Brand | Innolux |
| Size | 11.6 |
| Application | NBPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | CHIMEI INNOLUX |
| Panel Model | N116HSE-EA2 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 11.6 inch |
| Display Mode | AAS, Normally Black, Transmissive |
| Active Area | 256.32×144.18 mm |
| Outline | 268×157.35×5.15 mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193172% |
| Response Time | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDWithout Driver |

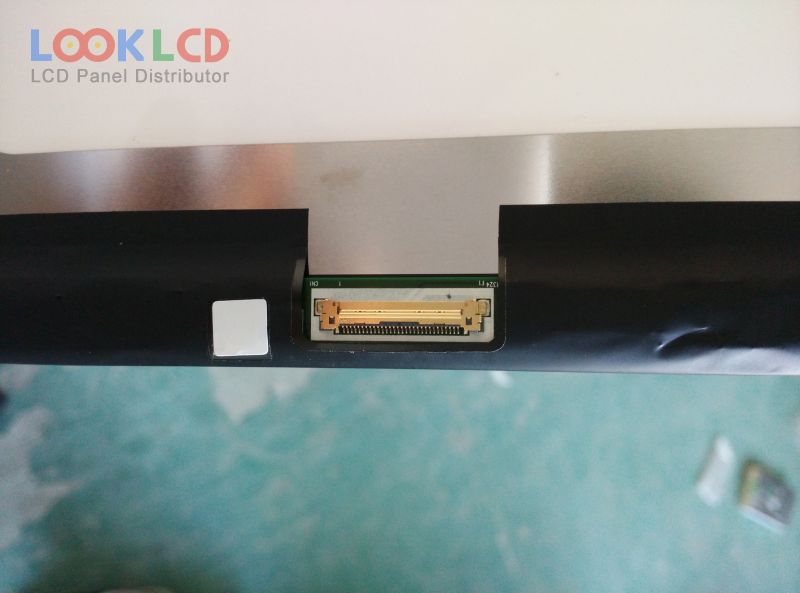

| Signal Interface | eDP (2 Lanes), 30 pins |
| Input Voltage | 3.3V (Typ.) |
| B116XW02 V0 | AUO | 11.6 | 1366×768 |
| LP116WH6-SPA2 | LG Display | 11.6 | 1366×768 |
| LTN116AT01-401 | Samsung | 11.6 | 1366×768 |
| LTN116AT02-D01 | Samsung | 11.6 | 1366×768 |
| N116BGE-L32 | Innolux | 11.6 | 1366×768 |
| N116HSE-EA1 | Innolux | 11.6 | 1920×1080 |
| N116HSE-EA2 | Innolux | 11.6 | 1920×1080 |
| N116HSE-EBC | Innolux | 11.6 | 1920×1080 |
| N116HSE-EJ1 | Innolux | 11.6 | 1920×1080 |
| VVX11F019G00 | Panasonic | 11.6 | 1920×1080 |
| LP140WH1-TLC1 | LG Display | 14.0 | 1366×768 |
| LP154WU1-TLB1 | LG Display | 15.4 | 1920×1200 |
| LP154WX5-TLA1 | LG Display | 15.4 | 1280×800 |
| LTD121EC5S | TOSHIBA | 12.1 | 1024×768 |
| LTN154X1-L03 | Samsung | 15.4 | 1280×800 |
| LTN160AT05-001 | Samsung | 16.0 | 1366×768 |
| LTN160HT03-001 | Samsung | 16.0 | 1920×1080 |
| LTN170BT05-G01 | Samsung | 17.0 | 1440×900 |
| NL8060BC26-13 | NLT | 10.4 | 800×600 |
| VVX16T010J00 | Panasonic | 15.5 | 2880×1620 |
