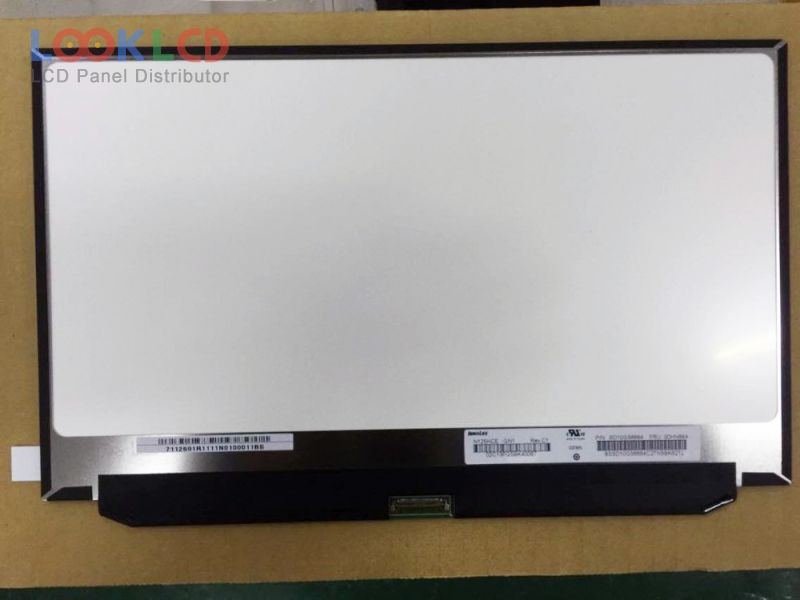

| PartNumber | N125HCE-GN1 |
| Brand | Innolux |
| Size | 12.5 |
| Application | NBPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 16.2M |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | INNOLUX |
| Panel Model | N125HCE-GN1 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 12.5 inch |
| Display Mode | AAS, Normally Black, Transmissive |
| Active Area | 276.48×155.52 mm |
| Outline | 282.68×168.81×2.5 mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Surface | Antiglare |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 16.2M (6-bit + Hi-FRC), CIE193150% |
| Response Time | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | eDP (2 Lanes), 30 pins |
| Input Voltage | 3.3V (Typ.) |
