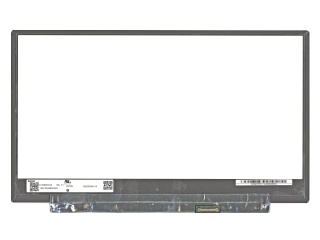

| PartNumber | N133BGE-EA2 |
| Brand | Innolux |
| Size | 13.3 |
| Application | Laptop |
| Resolution | 1366×768 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Manufacturer | Innolux |
| Model Name | N133BGE-EA2 (CMN1393) |
| Screen Size | 13.3 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 118PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 293.42 × 164.97 (H×V) |
| Outline(mm) | 306.3 × 189.15 × 2.85 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Response | 3/8 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% NTSC |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (1 Lane) , eDP1.2 , Connector 30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| N133B6-L01 | Innolux | 13.3 | 1366×768 |
| N133B6-L02 | Innolux | 13.3 | 1366×768 |
| N133BGE-E31 | Innolux | 13.3 | 1366×768 |
| N133BGE-E51 | Innolux | 13.3 | 1366×768 |
| N133BGE-EAB | Innolux | 13.3 | 1366×768 |
| N133BGE-EB1 | Innolux | 13.3 | 1366×768 |
| N133BGE-L21 | Innolux | 13.3 | 1366×768 |
| N133BGE-L31 | Innolux | 13.3 | 1366×768 |
| N133BGE-L41 | Innolux | 13.3 | 1366×768 |
| N133BGE-LB1 | Innolux | 13.3 | 1366×768 |
