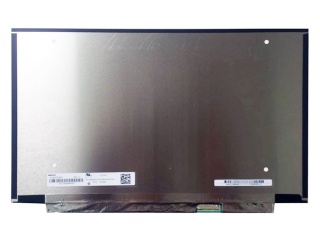

N133HCE-EPA


Brand
Innolux
Size
13.3
Application
Laptop
Resolution
1920×1080
Composition
a-Si TFT-LCD, LCM
Brightness
CR
800:1
Colors
262K
Backlight
WLED
Interface
eDP
In Stock
11561
Specifications
PartNumber N133HCE-EPA
BrandInnolux
Size13.3
ApplicationLaptop
Resolution1920×1080
Compositiona-Si TFT-LCD, LCM
Brightness
CR800:1
Colors262K
BacklightWLED
InterfaceeDP
ModelN133HCE-EPA (CMN1384)
Diagonal Size13.3 inch
Typea-Si TFT-LCD, LCM
Pixel Format1920(RGB)×1080  [FHD]  166PPI
ConfigurationRGB Vertical Stripe
Active Area293.76(H)×165.24(V) mm
Outline Dim.300.26(H)×187.62(V) ×2.5(D) mm
Bezel Area-
TreatmentGlare (Haze 0%), Hard coating (3H)
Luminance220 cd/m² (Typ.)
Contrast Ratio800:1 (Typ.) (TM)
View DirectionSymmetry
Response Time14/11 (Typ.)(Tr/Td)
Viewing Angle85/85/85/85 (Typ.)(CR≥10)
Operating ModeAAS, Normally Black, Transmissive
Support Color262K   45% NTSC
Light SourceWLED , 15K hours , With LED Driver
Form StyleSlim (PCBA Flat, T≤3.2mm)
Designed ForLaptop
Frame Rate60Hz
Touch PanelWithout
Interface TypeeDP (2 Lanes) , eDP1.3 , 30 pins Connector
Power Supply3.3V (Typ.)
EnvironmentOperating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
