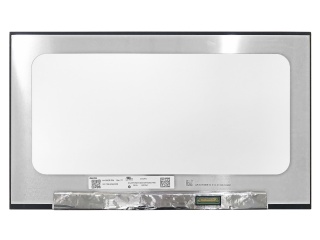

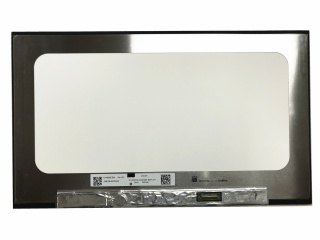

| PartNumber | N140BGE-E54 |
| Brand | Innolux |
| Size | 14.0 |
| Application | Laptop |
| Resolution | 1366(RGB)×768, WXGA, 112PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 220 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | Innolux |
| Panel Model | N140BGE-E54 (CMN14E6) |
| Panel Size | 14.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 309.399(W)×173.952(H) mm |
| Bezel Opening | - |
| Outline Size | 315.9(W)×186.1(H) ×5.25(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 3/7 (Typ.)(Tr/Td) |
| Display Colors | 262K 45% NTSC |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Bent, T≤3.0mm) |
| Signal Interface | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| N140B6-D11 | Innolux | 14.0 | 1366×768 |
| N140B6-L01 | Innolux | 14.0 | 1366×768 |
| N140B6-L06 | Innolux | 14.0 | 1366×768 |
| N140BGE-E33 | Innolux | 14.0 | 1366×768 |
| N140BGE-EA3 | Innolux | 14.0 | 1366×768 |
| N140BGE-L11 | Innolux | 14.0 | 1366×768 |
| N140BGE-L41 | Innolux | 14.0 | 1366×768 |
| N140BGE-L42 | Innolux | 14.0 | 1366×768 |
| N140BGE-LB2 | Innolux | 14.0 | 1366×768 |
| N140BGN-E42 | Innolux | 14.0 | 1366×768 |
