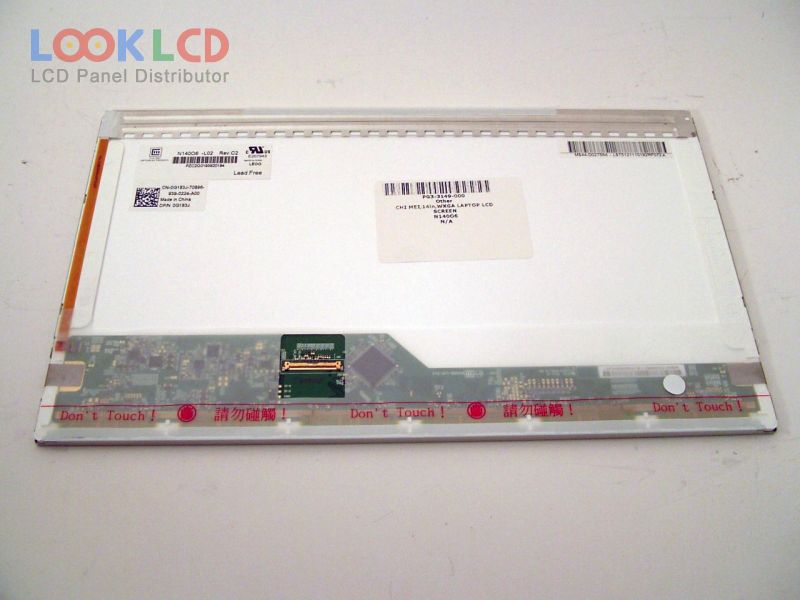

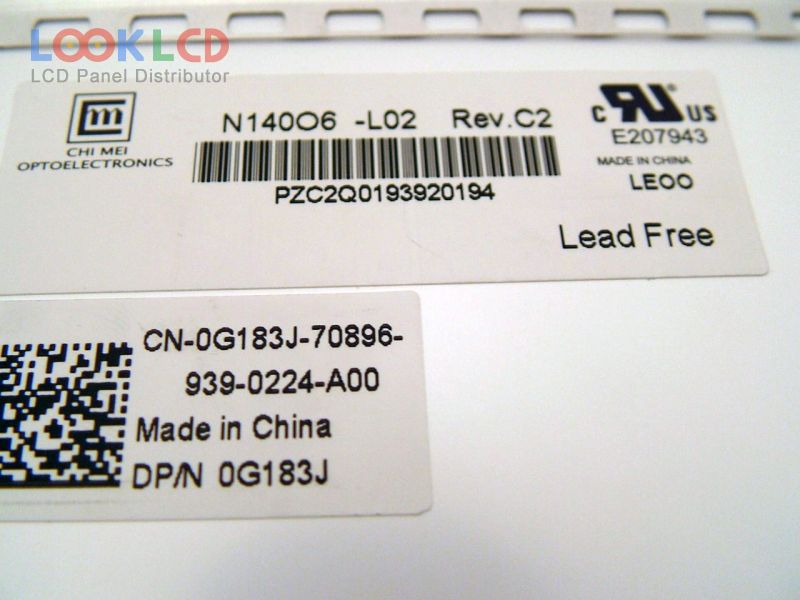

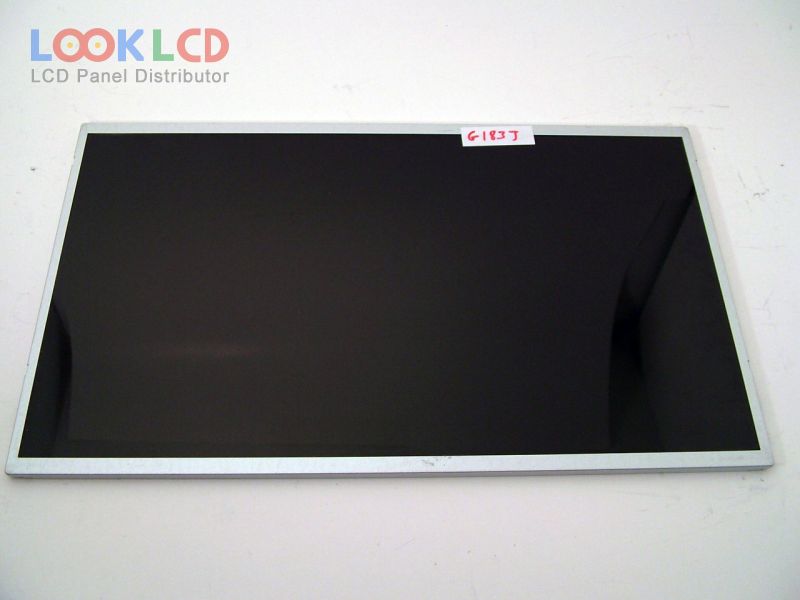

| PartNumber | N140O6-L02 |
| Brand | Innolux |
| Size | 14.0 |
| Application | NBPC |
| Resolution | 1600(RGB)×900 , HD+ |
| Composition | LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 650:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | CMO |
| Panel Model | N140O6-L02 2 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 14.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 309.6×174.15 mm |
| Outline | 323.5×192×5.4 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 650:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193160% |
| Response Time | 3/7 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 9S6PWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| B140XTN02.0 | AUO | 14.0 | 1366×768 |
| B140XW01 V8 | AUO | 14.0 | 1366×768 |
| HB140WX1-301 | BOE | 14.0 | 1366×768 |
| HB140WX1-401 | BOE | 14.0 | 1366×768 |
| HT14X14-101 | HYDIS | 14.0 | 1024×768 |
| LP140QH1-SPB1 | LG Display | 14.0 | 2560×1440 |
| LTN140AT07-306 | Samsung | 14.0 | 1366×768 |
| LTN140AT20-W05 | Samsung | 14.0 | 1366×768 |
| LTN140AT22-W01 | Samsung | 14.0 | 1366×768 |
| N140O6-L02 | Innolux | 14.0 | 1600×900 |
| B140XTN03.4 | AUO | 14.0 | 1366×768 |
| B141XG10 V0 | AUO | 14.1 | 1024×768 |
| CLAA133UA03 | CPT | 13.3 | 1600×900 |
| HB140WX1-500 | BOE | 14.0 | 1366×768 |
| LP154WP2-TLA1 | LG Display | 15.4 | 1440×900 |
| LP173WD1-TLA1 | LG Display | 17.3 | 1600×900 |
| LQ156D1JW04 | SHARP | 15.6 | 3840×2160 |
| LTN133AT16-S01 | Samsung | 13.3 | 1280×800 |
| N121X5-L06 | Innolux | 12.1 | 1024×768 |
| N133HSE-EA3 | Innolux | 13.3 | 1920×1080 |
