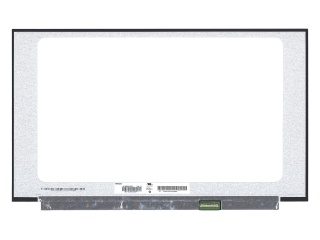

| PartNumber | N156BGA-EB3 |
| Brand | Innolux |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 1366×768 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 600:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Model | N156BGA-EB3 (CMN15FD) |
| Diagonal Size | 15.6 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1366(RGB)×768 [WXGA] 100PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 344.232(H)×193.536(V) mm |
| Outline Dim. | 350.73(H)×216.56(V) ×3.2(D) mm |
| Bezel Area | - |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 3/7 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 45% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
