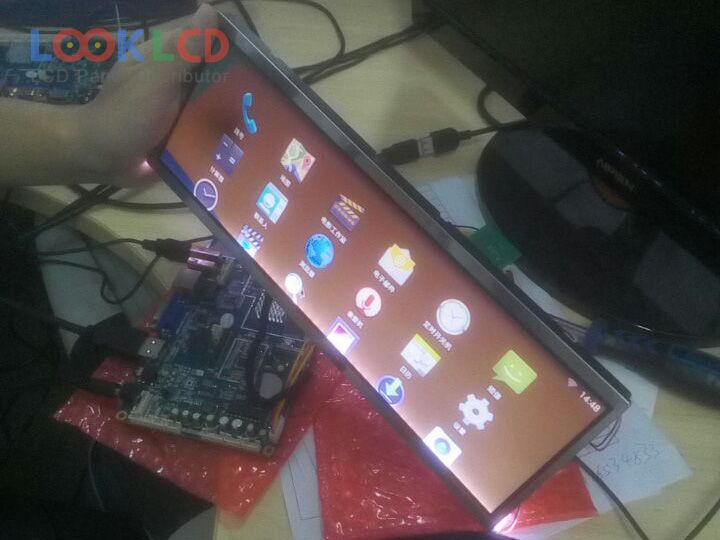

| PartNumber | ND168TXP01 |
| Brand | |
| Size | 16.8 |
| Application | PID |
| Resolution | 1366(RGB)×378 |
| Composition | LCM |
| Brightness | 800 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | |
| Panel Model | ND168TXP01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 16.8 inch(1/2 cut of 18.5") |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 409.8×113.4 mm |
| Outline | 430.37×137.3×11.5 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (6-bit + Hi-FRC), CIE193171% |
| Response Time | 5 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
| ND168TXP01 | 16.8 | 1366×378 |
| BRS420H2 | 42 | 1920×1080 | |
| LD420EUP-SEA1 | LG Display | 42 | 1920×1080 |
| LTI460HM02 | Samsung | 46 | 1920×1080 |
| LTI460HN03 | Samsung | 46 | 1920×1080 |
| LTI460WT-L02 | Samsung | 46 | 1366×768 |
| LTI520HB02 | Samsung | 52 | 1920×1080 |
| LTI820HD03 | Samsung | 82 | 1920×1080 |
| P270HVN01.0 | AUO | 27.0 | 1920×1080 |
| P546HW03 V0 | AUO | 55 | 1920×1080 |
| P650HVF01.0 | AUO | 65 | 1920×1080 |
