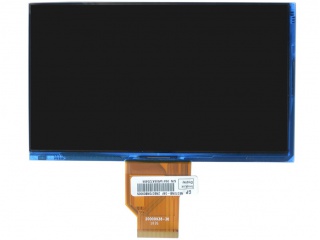

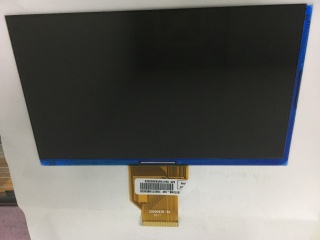

| PartNumber | NE070NB-04F |
| Brand | Chimei Innolux |
| Size | 7.0 |
| Application | Digital Photo Frame |
| Resolution | 800×480 |
| Composition | a-Si TFT-LCD, CELL |
| Brightness | |
| CR | 500:1 |
| Colors | 262K/16.7M |
| Backlight | No |
| Interface | Parallel |
| Model | NE070NB-04F |
| Diagonal Size | 7.0 inch |
| Type | a-Si TFT-LCD, CELL |
| Pixel Format | 800(RGB)×480 [WVGA] 134PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 154.08(H)×85.92(V) mm |
| Outline Dim. | 162.5(H)×96.62(V) ×1.43(D) mm |
| Bezel Area | - |
| Treatment | Antiglare |
| Luminance | 0 cd/m² |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Plate Thickness | 0.50+0.50 mm |
| Transmittance | 4.86% (Typ.)(with Polarizer) |
| Support Color | 262K/16.7M |
| Light Source | No B/L |
| Weight | 45.0g (Typ.) |
| Designed For | Digital Photo Frame Portable DVD Player |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COG Built-in 1 source + 1 gate chips |
| Interface Type | Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
| Power Supply | 3.3/10.4/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
