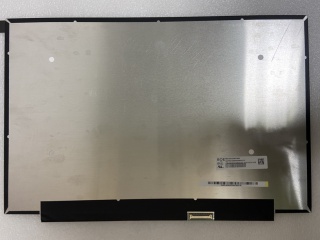

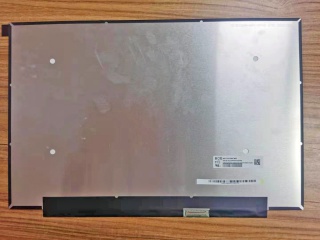

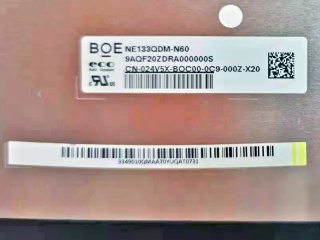

| PartNumber | NE133QDM-N60 |
| Brand | BOE |
| Size | 13.3 |
| Application | Laptop |
| Resolution | 2560×1600 |
| Composition | Oxide TFT-LCD, LCM |
| Brightness | |
| CR | 1500:1 |
| Colors | 1.06B |
| Backlight | WLED |
| Interface | eDP |
| Model | NE133QDM-N60 (BOE0958) |
| Diagonal Size | 13.3 inch |
| Type | Oxide TFT-LCD, LCM |
| Pixel Format | 2560(RGB)×1600 [WQXGA] 227PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 286.08(H)×178.8(V) mm |
| Outline Dim. | 291.08(H)×195.3(V) ×2.5(D) mm |
| Bezel Area | - |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 1.06B 100% sRGB |
| Light Source | WLED [11S5P] , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (4 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
