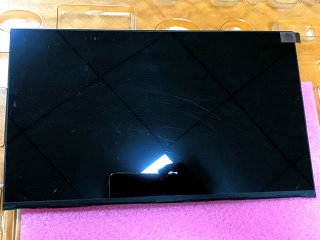

| PartNumber | NE133QUM-N42 |
| Brand | BOE |
| Size | 13.3 |
| Application | Laptop |
| Resolution | 3840×2160 |
| Composition | LCM , Oxide TFT-LC |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | 9S5P WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Manufacturer | BOE |
| Model Name | NE133QUM-N42 (BOE08CA) |
| Screen Size | 13.3 inch |
| Screen Type | LCM , Oxide TFT-LCD |
| Pixel Number | 3840(RGB)×2160 (UHD) 332PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 293.76 × 165.24 (H×V) |
| Outline(mm) | 298.76 × 176.42 × 4.6 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 100% sRGB |
| Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
