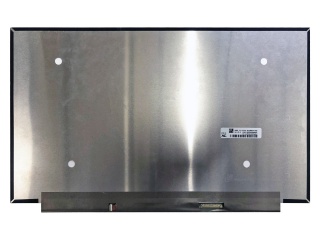

| PartNumber | NE156QUM-NZ3 |
| Brand | BOE |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 3840×2160 |
| Composition | LCM , Oxide TFT-LC |
| Brightness | |
| CR | 1200:1 |
| Colors | 16.7M |
| Backlight | 12S6P WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Manufacturer | BOE |
| Screen Size | 15.6 inch |
| Pixel Number | 3840(RGB)×2160 (UHD) 283PPI |
| Active Area(mm) | 344.218 × 193.622 (H×V) |
| Bezel Area(mm) | - |
| Luminance | 400 cd/m² (Typ.) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 100% sRGB |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Refresh Rate | 120Hz |

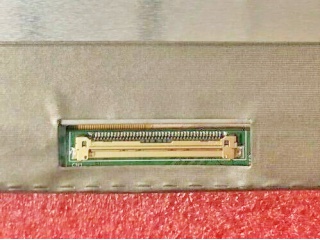

| Signal Type | eDP (4 Lanes) , eDP1.4 , HBR3 (8.1G/lane) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

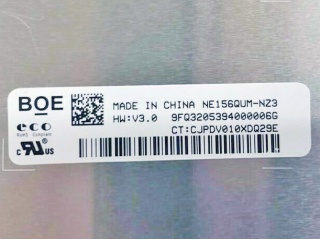

| Model Name | NE156QUM-NZ3 (BOE08E0) |
| Screen Type | LCM , Oxide TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 350.66 × 216.12 × 2.6 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Response | 10 (Typ.)(Tr+Td) ms |
| Work Mode | ADS, Normally Black, Transmissive |
| Used for | Laptop |
| Touchscreen | Without |
