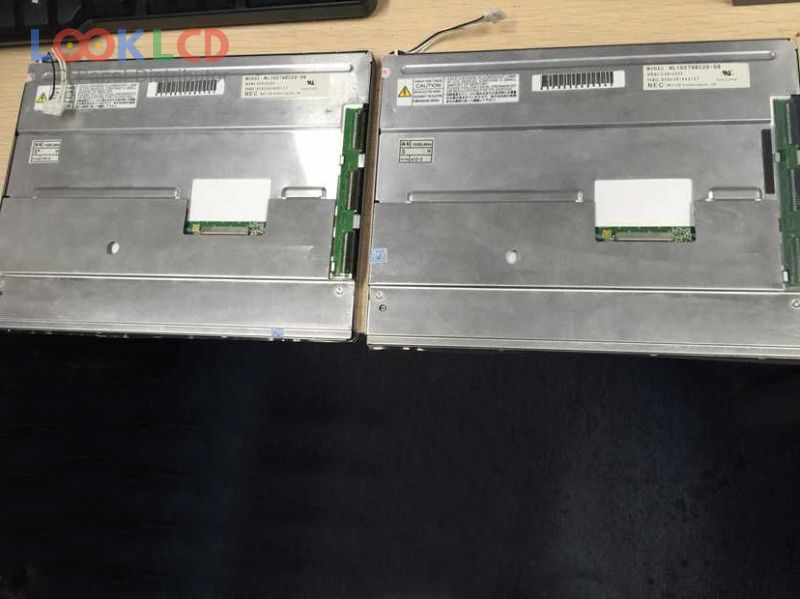

| PartNumber | NL10276BC20-08 |
| Brand | NLT |
| Size | 10.4 |
| Application | IA |
| Resolution | 1024(RGB)×768 , XGA |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | NEC |
| Panel Model | NL10276BC20-08 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 10.4 inch |
| Display Mode | SA-SFT, Normally Black, Transmissive |
| Active Area | 210.4×157.8 mm |
| Outline | 227×174.5 mm |
| Surface | Clear, Hard coating (3H) |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193140% |
| Response Time | 13/12 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
