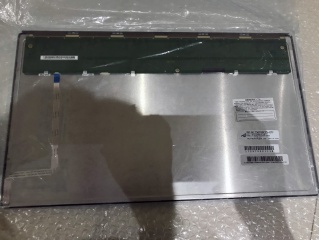

| PartNumber | NL13676BC25-07F |
| Brand | NLT |
| Size | 15.6 |
| Application | Industrial Outdoor High Brightness |
| Resolution | 1366(RGB)×768, WXGA, 100PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 1250 cd/m² (Typ.) |
| CR | 900:1 |
| Colors | 262K/16.7M |
| Backlight | 6 |
| Interface | LVDS |
| Panel Brand | NLT |
| Panel Size | 15.6" |
| Display Area | 344.232(W)×193.536(H) mm |
| Outline Size | 363.8(W)×215.9(H) ×13.15(D) mm |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K/16.7M 60% NTSC |
| Frequency | 60Hz |
| Panel Weight | 1.07/1.17Kgs (Typ./Max.) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| Panel Model | NL13676BC25-07F |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 347.55(W)×196.85(H) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 3/15 (Typ.)(Tr/Td) |
| Lamp Type | 6 strings WLED , 7K hours , Without Driver |
| Touch Screen | Without |
