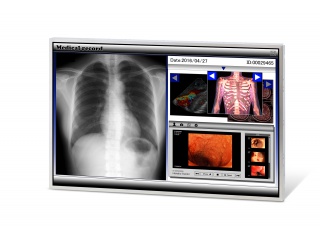

| PartNumber | NL328204AC19-01 |
| Brand | NLT |
| Size | 30.0 |
| Application | Outdoor High Brightn |
| Resolution | 3280×2048 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 1500:1 |
| Colors | 1.07B |
| Backlight | WLED , With LED Driver |
| Interface | |
| Manufacturer | NLT |
| Model Name | NL328204AC19-01 |
| Screen Size | 30.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 3280(RGB)×2048 129PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 645.504 × 403.046 (H×V) |
| Outline(mm) | 670 × 427 × 30.5 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Antiglare |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | SFT2, Normally Black, Transmissive |
| Color Depth | 1.07B 72% NTSC |
| Mass | 5.50Kgs |
| Used for | Outdoor High Brightness Medical Imaging |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C |
