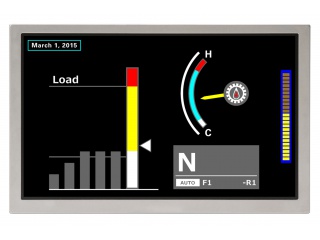

| PartNumber | NL8048BC21-03F |
| Brand | NLT |
| Size | 8.0 |
| Application | Industrial Outdoor H |
| Resolution | 800×480 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 1000:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Diagonal Size | 8.0 inch |
| Pixel Format | 800(RGB)×480 [WVGA] 116PPI |
| Active Area | 174(H)×104.4(V) mm |
| Bezel Area | - |
| Luminance | 1000 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Support Color | 262K/16.7M 72% NTSC |
| Weight | 225g |
| Frame Rate | 60Hz |
| Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C ; Vibration Level: 6.8G (66.64 m/s²) |
| Model | NL8048BC21-03F |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 192(H)×122(V) mm |
| Treatment | Antiglare |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 20 (Typ.)(Tr+Td) |
| Operating Mode | SFT, Normally Black, Transmissive |
| Light Source | WLED |
| Designed For | Industrial Outdoor High Brightness |
| Touch Panel | Without |
