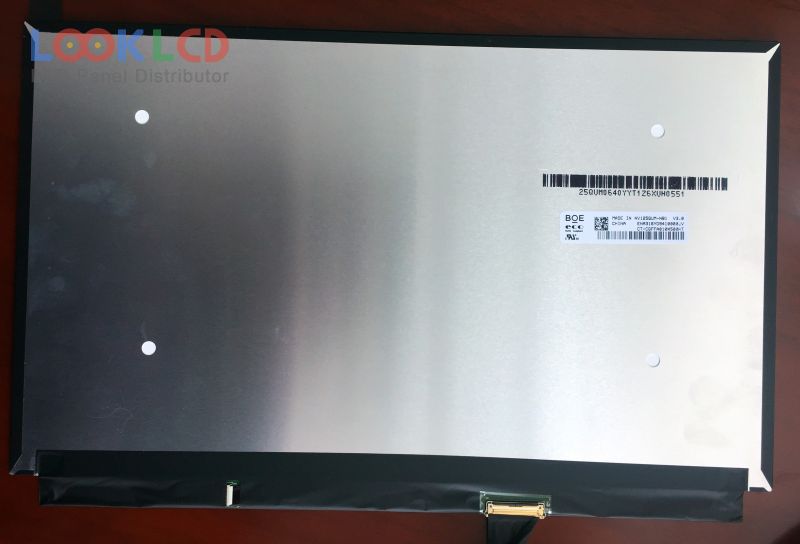

| PartNumber | NV125QUM-N81 |
| Brand | BOE |
| Size | 12.5 |
| Application | NBPC |
| Resolution | 3840(RGB)×2160 , UHD |
| Composition | LCM |
| Brightness | 400 cd/m² (Typ.) |
| CR | 1500:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | BOE |
| Panel Model | NV125QUM-N81 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 12.5 inch |
| Display Mode | HADS, Normally Black, Transmissive |
| Active Area | 276.48×155.52 mm |
| Outline | 282.08×168.89×4.6 mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Surface | Antiglare |
| Contrast Ratio | 1500:1 (Typ.) |
| Display Colors | 16.7M (8-bit), Adobe100% |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 8S8PWLEDEmbedded (LED Driver) |
| Signal Interface | eDP (4 Lanes), 40 pins |
| Input Voltage | 3.3V (Typ.) |
