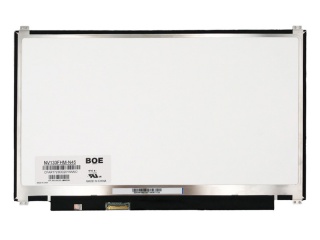

| PartNumber | NV133FHM-N45 |
| Brand | BOE |
| Size | 13.3 |
| Application | Laptop |
| Resolution | 1920(RGB)×1080, FHD, 166PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 220 cd/m² (Typ.) |
| CR | 600:1 |
| Colors | 262K |
| Backlight | 8S4P |
| Interface | eDP |
| Panel Brand | BOE |
| Panel Model | NV133FHM-N45 (BOE06FD) |
| Panel Size | 13.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 293.76(W)×165.24(H) mm |
| Bezel Opening | - |
| Outline Size | 305.35(W)×193.45(H) ×3(D) mm |
| Surface | Antiglare |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 262K 45% NTSC |
| Lamp Type | 8S4P WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
