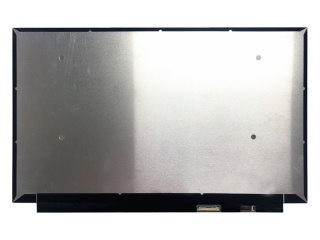

| PartNumber | NV133FHM-N66 |
| Brand | BOE |
| Size | 13.3 |
| Application | Laptop |
| Resolution | 1920×1080 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 800:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Model | NV133FHM-N66 (BOE0740) |
| Diagonal Size | 13.3 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 166PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 293.76(H)×165.24(V) mm |
| Outline Dim. | 299.96(H)×186.92(V) ×2.1(D) mm |
| Bezel Area | - |
| Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 262K 72% NTSC |
| Light Source | WLED [10S4P] , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B133XTN01.2 | AUO | 13.3 | 1366×768 |
| LP133WP1-TJA7 | LG Display | 13.3 | 1440×900 |
| LTD133EX3X | TOSHIBA | 13.3 | 1280×800 |
| LTN133AT13-001 | Samsung | 13.3 | 1280×800 |
| LTN133AT25-501 | Samsung | 13.3 | 1366×768 |
| LTN133YL01-F01 | Samsung | 13.3 | 3200×1800 |
| N133BGE-E31 | Innolux | 13.3 | 1366×768 |
| N133HSE-E21 | Innolux | 13.3 | 1920×1080 |
| NV133FHM-N43 | BOE | 13.3 | 1920×1080 |
| NV133FHM-N52 | BOE | 13.3 | 1920×1080 |
