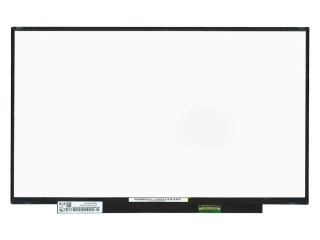

PartNumber | NV140FHM-N4J |
Brand | BOE |
Size | 14.0 |
Application | Laptop |
Resolution | 1920×1080 |
Composition | LCM, a-Si TFT-LCD |
Brightness | |
CR | 800:1 |
Colors | - |
Backlight | WLED , 15K hours |
Interface | |
Manufacturer | BOE |
Model Name | NV140FHM-N4J |
Screen Size | 14.0 inch |
Screen Type | LCM, a-Si TFT-LCD |
Pixel Number | 1920(RGB)×1080 (FHD) 157PPI |
Arrangement | RGB Vertical Stripe |
Active Area(mm) | 309.31 × 173.99 (H×V) |
Outline(mm) | - |
Luminance | - |
Contrast Ratio | 800 : 1 (Typ.) (TM) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Response | - |
Good View at | Symmetry |
Work Mode | ADS, Normally Black, Transmissive |
Color Depth | |
Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
Used for | Laptop |
Refresh Rate | 60Hz |
Touchscreen | Without |
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
