| PartNumber | NV166FHM-N41 |
| Brand | BOE |
| Size | 16.6 |
| Application | Laptop Gaming |
| Resolution | 1920(RGB)×1080, FHD, 132PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 1200:1 |
| Colors | 16.7M |
| Backlight | 11S6P |
| Interface | eDP |
| Panel Brand | BOE |
| Panel Model | NV166FHM-N41 (BOE084F) |
| Panel Size | 16.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 368.64(W)×207.36(H) mm |
| Bezel Opening | - |
| Outline Size | 375.14(W)×231.66(H) ×5.4(D) mm |
| Surface | Antiglare |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 9 (Typ.)(Tr+Td); 3 (Typ.)(G to G) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 11S6P WLED , 15K hours , With LED Driver |
| Frequency | 144Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |

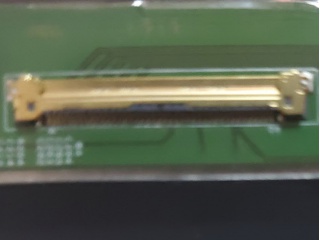

| Signal Interface | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
