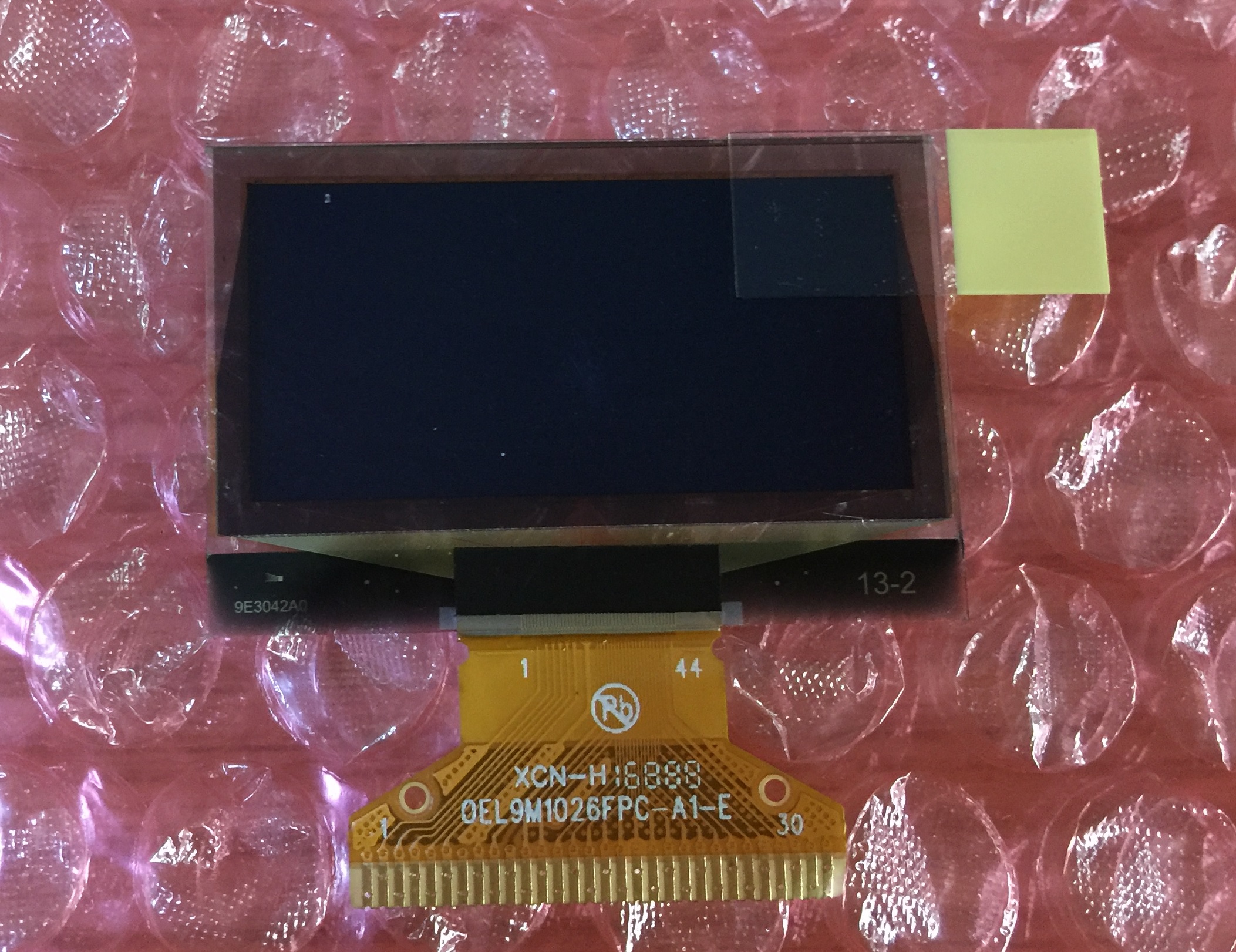

| PartNumber | OEL9M1026-W-E |
| Brand | TRULY |
| Size | 1.3 |
| Application | Wearable MP3 PMP |
| Resolution | 128×64 |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | 10000:1 |
| Colors | Mono(White) |
| Backlight | self |
| Interface | 8-bit |
| Model | OEL9M1026-W-E |
| Diagonal Size | 1.3 inch |
| Type | PM-OLED, OLED |
| Pixel Format | 128×64 110PPI |
| Configuration | Rectangle |
| Active Area | 29.42(H)×14.7(V) mm |
| Outline Dim. | 34.5(H)×23(V) ×1.55(D) mm |
| Bezel Area | 31.42(H)×16.7(V) mm |
| Treatment | - |
| Luminance | 116 cd/m² (Typ.) |
| Contrast Ratio | 10000:1 (Min.) (TM) |
| View Direction | Symmetry |
| Response Time | 0.02/0.02 (Max.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Min.) |
| Operating Mode | - |
| Support Color | Mono(White) |
| Light Source | self , 20K hours |
| Weight | 3.00g (Typ.) |
| Designed For | Wearable MP3 PMP |
| Frame Rate | 100Hz |
| Touch Panel | Without |
| D-IC Detail | COG Built-in SH1106G |
| Interface Type | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C , 30 pins FPC |
| Power Supply | 1.65/3.5V (Typ./Max.)(VDD1) |
| Environment | Operating Temperature: -40 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C |
| OEL9M1004-L4-E | Other | 1.5 | 128×128 |
| OEL9M1007-B-E | Other | 1.1 | 96×96 |
| OEL9M1007-G-E | Other | 1.1 | 96×96 |
| OEL9M1007-W-E | Other | 1.1 | 96×96 |
| OEL9M1007-Y-E | Other | 1.1 | 96×96 |
| OEL9M1010-B-E | Other | 0.95 | 96×64 |
| OEL9M1010-G-E | Other | 0.95 | 96×64 |
| OEL9M1010-R-E | Other | 0.95 | 96×64 |
| OEL9M1010-W-E | Other | 0.95 | 96×64 |
| OEL9M1010-Y-E | Other | 0.95 | 96×64 |
