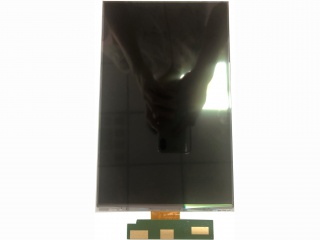

| PartNumber | P101GWWC R5 |
| Brand | IVO |
| Size | 10.1 |
| Application | Pad & Tablet |
| Resolution | 800×1280 |
| Composition | a-Si TFT-LCD, CELL |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | No |
| Interface | MIPI |
| Model | P101GWWC R5 |
| Diagonal Size | 10.1 inch |
| Type | a-Si TFT-LCD, CELL |
| Pixel Format | 800(RGB)×1280 [WXGA] 150PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 135.36(H)×216.576(V) mm |
| Outline Dim. | 139.36(H)×225.8(V) ×1.06(D) mm |
| Bezel Area | - |
| Treatment | Antiglare |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Plate Thickness | 0.40+0.40 mm |
| Transmittance | 6.2% (Typ.) |
| Support Color | 16.7M 60% NTSC |
| Light Source | No B/L |
| Weight | 85.0g (Max.) |
| Designed For | Pad & Tablet |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COG Built-in 1 source chips |
| Interface Type | MIPI (4 data lanes) , 39 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
