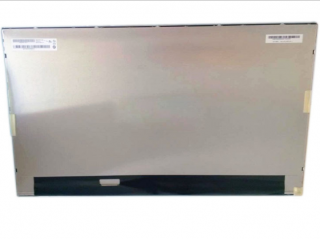

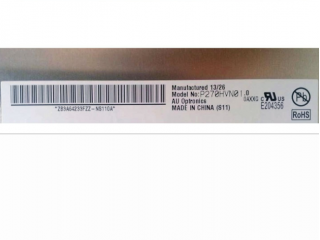

| PartNumber | P270HVN01.1 |
| Brand | AUO |
| Size | 27.0 |
| Application | Digital Signage |
| Resolution | 1920×1080 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 3000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Model | P270HVN01.1 |
| Diagonal Size | 27.0 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 81PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 597.6(H)×336.15(V) mm |
| Outline Dim. | 613.6(H)×356.85(V) ×10.5(D) mm |
| Bezel Area | 601.6(H)×340.15(V) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 20 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AMVA, Normally Black, Transmissive |
| Support Color | 16.7M 90% NTSC |
| Light Source | WLED [15S4P] , 30K hours , W/O Driver |
| Weight | 2.18Kgs (Typ.) |
| Designed For | Digital Signage |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| HR270WU1-200 | BOE | 27.0 | 1920×1080 |
| LM270WF2-TLA5 | LG Display | 27.0 | 1920×1080 |
| LM270WF5-SLB1 | LG Display | 27.0 | 1920×1080 |
| LM270WF6-SSZ1 | LG Display | 27.0 | 1920×1080 |
| LM270WQ1-SDC2 | LG Display | 27.0 | 2560×1440 |
| LM270WQ1-SDE3 | LG Display | 27.0 | 2560×1440 |
| LTM270DL02 | Samsung | 27.0 | 2560×1440 |
| LTM270RL01 | Samsung | 27.0 | 5120×2880 |
| P270HVN01.0 | AUO | 27.0 | 1920×1080 |
| P270MWN1 R0 | IVO | 27.0 | 1920×1080 |
