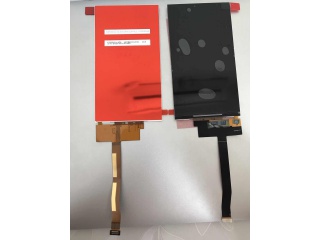

| PartNumber | PJ050IA-05L |
| Brand | Innolux |
| Size | 5.0 |
| Application | Mobile Phone |
| Resolution | 720×1280 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | 6S2P WLED , No Driver |
| Interface | MIPI |
| Manufacturer | Innolux |
| Model Name | PJ050IA-05L |
| Screen Size | 5.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 720(RGB)×1280 (WXGA) 294PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 62.1 × 110.4 (H×V) |
| Outline(mm) | 64.18 × 117.56 × 1.42 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Mass | 17.2g |
| Used for | Mobile Phone |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | MIPI (4 data lanes) , 30 pins Connector |
| Voltage Supply | 1.8/5.4/-5.4V (Typ.)(VDDI/AVDD/AVEE) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
