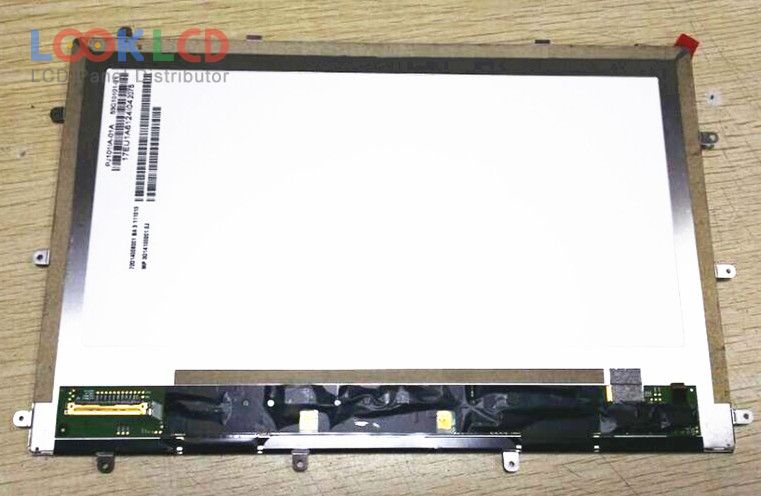

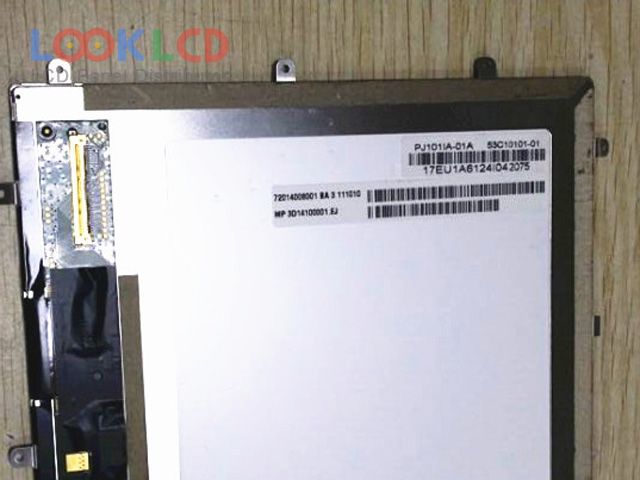

| PartNumber | PJ101IA-01A |
| Brand | Innolux |
| Size | 10.1 |
| Application | PAD |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | LCM |
| Brightness | 450 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | MIPI |
| Panel Brand | INNOLUX |
| Panel Model | PJ101IA-01A |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 10.1 inch |
| Display Mode | IPS, Normally Black, Transmissive |
| Active Area | 216.96×135.36 mm |
| Outline | 227.56×148.2×4.65 mm |
| Surface | Hard coating |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193150% |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLED |
| Signal Interface | MIPI (4 data lanes), 40 pins |
| Input Voltage | 3.3V (Typ.) |
