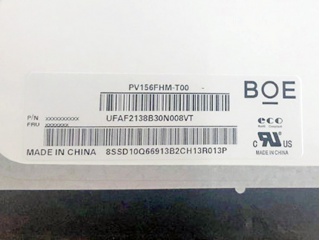

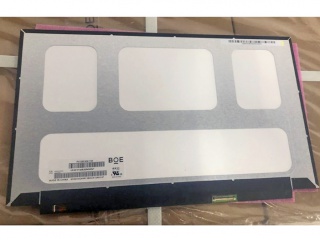

| PartNumber | PV156FHM-T00 |
| Brand | BOE |
| Size | 15.6 |
| Application | Industrial |
| Resolution | 1920×1080 |
| Composition | a-Si TFT-LCD, Assemb |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Model | PV156FHM-T00 (BOE083E) |
| Diagonal Size | 15.6 inch |
| Type | a-Si TFT-LCD, Assembly |
| Pixel Format | 1920(RGB)×1080 [FHD] 141PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 344.16(H)×193.59(V) mm |
| Outline Dim. | 361(H)×223(V) mm |
| Bezel Area | - |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Min.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | - |
| Support Color | 16.7M 45% NTSC |
| Light Source | WLED [11S4P] , 30K hours , With LED Driver |
| Weight | 670g (Max.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | On-Cell Touch |
| Interface Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B156RW01 V1 | AUO | 15.6 | 1600×900 |
| B156XW03 V1 | AUO | 15.6 | 1366×768 |
| B156XW03 V2 | AUO | 15.6 | 1366×768 |
| B156XW04 V5 | AUO | 15.6 | 1366×768 |
| LP156WF1-TLB1 | LG Display | 15.6 | 1920×1080 |
| LP156WF6-SPB1 | LG Display | 15.6 | 1920×1080 |
| LP156WH1-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLC1 | LG Display | 15.6 | 1366×768 |
| LTN156AT01-B01 | Samsung | 15.6 | 1366×768 |
| M156B1-L01 | Innolux | 15.6 | 1366×768 |
