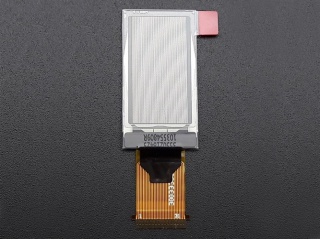

| PartNumber | RGS10064128FR004 |
| Brand | RiTdisplay |
| Size | 0.96 |
| Application | Wearable |
| Resolution | 64(RGB)×128, 149PPI |
| Composition | PM-OLED, OLED |
| Brightness | - |
| CR | 2000:1 |
| Colors | 65K |
| Backlight | self |
| Interface | CPU/SPI |
| Panel Brand | RiTdisplay |
| Panel Model | RGS10064128FR004 |
| Panel Size | 0.96" |
| Panel Type | PM-OLED, OLED |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 10.8624(W)×21.74(H) mm |
| Bezel Opening | 11.862(W)×22.74(H) mm |
| Outline Size | 14.86(W)×28.4(H) ×1.12(D) mm |
| Surface | - |
| Contrast Ratio | 2000:1 (Min.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.) |
| Display Mode | - |
| Best View on | Symmetry |
| Response Time | 0.01 (Typ.) |
| Display Colors | 65K |
| Lamp Type | self |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COG Built-in SSD1357Z |
| Panel Weight | - |
| Signal Interface | CPU/SPI , 31 pins FPC |
