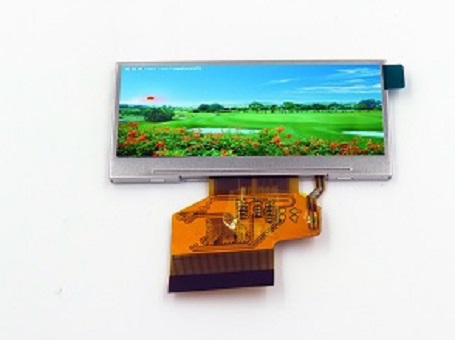

| PartNumber | S029Q03 |
| Brand | CDTECH |
| Size | 2.9 |
| Application | Stretched Bar LCD |
| Resolution | 320×120 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 400:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | 8/9/16/18-bit |
| Model | S029Q03 |
| Diagonal Size | 2.9 inch (1/2 cut of 3.5") |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 320(RGB)×120 115PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 70.08(H)×26.284(V) mm |
| Outline Dim. | 76.9(H)×37.72(V) ×3.46(D) mm |
| Bezel Area | 72.68(H)×28.88(V) mm |
| Treatment | - |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| View Direction | 12 o'clock |
| Response Time | 8/17 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/55/65 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 61% NTSC |
| Light Source | WLED [6S1P] , 30K hours , W/O Driver |
| Weight | TBD |
| Designed For | Stretched Bar LCD |
| Frame Rate | - |
| Touch Panel | Without |
| Interface Type | 8/9/16/18-bit 6800/8080 parallel, 6/9/16/18-bit RGB, SPI , 54 pins FPC |
| Power Supply | 3.3/3.3V (Typ.)(VCI/VDDIO) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
