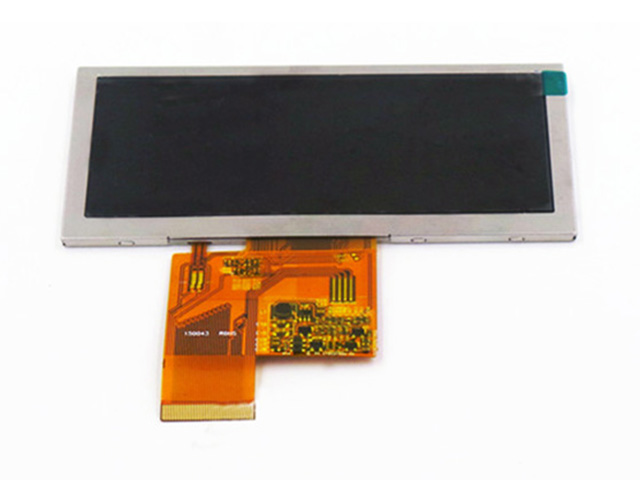

| PartNumber | S046WV01 |
| Brand | CDTECH |
| Size | 4.6 |
| Application | Industrial |
| Resolution | 800(RGB)×320, 188PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 16.7M |
| Backlight | 6S2P |
| Interface | Parallel |
| Panel Brand | CDTECH |
| Panel Model | S046WV01 |
| Panel Size | 4.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 108(W)×43.2(H) mm |
| Bezel Opening | 110.6(W)×46.0(H) mm |
| Outline Size | 120.7(W)×56.16(H) ×3.3(D) mm |
| Surface | - |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 65/65/55/65 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 20 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 50% NTSC |
| Lamp Type | 6S2P WLED , 25K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | TBD |
| Signal Interface | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| Input Voltage | 3.3V (Typ.)(VDD) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
