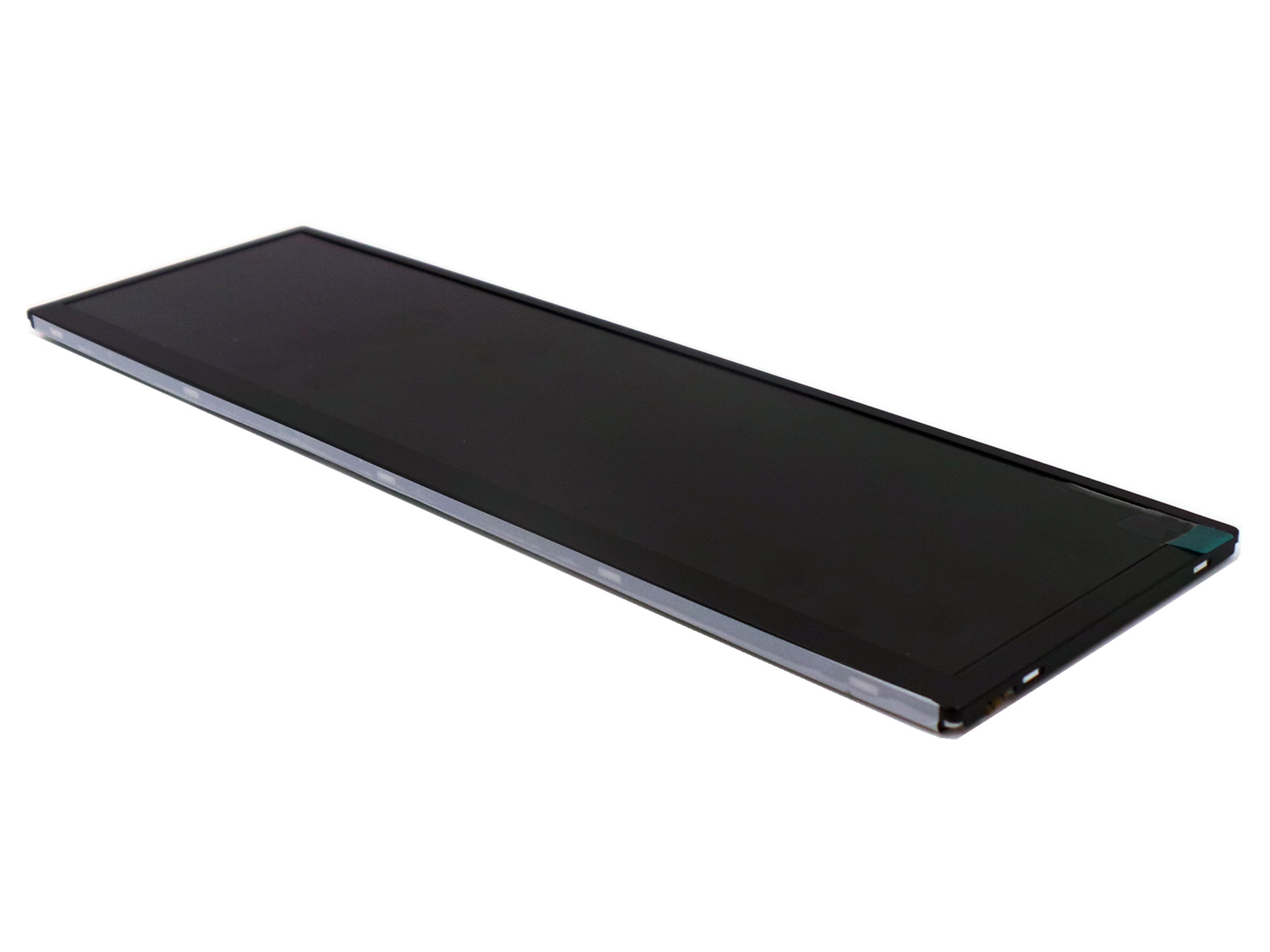

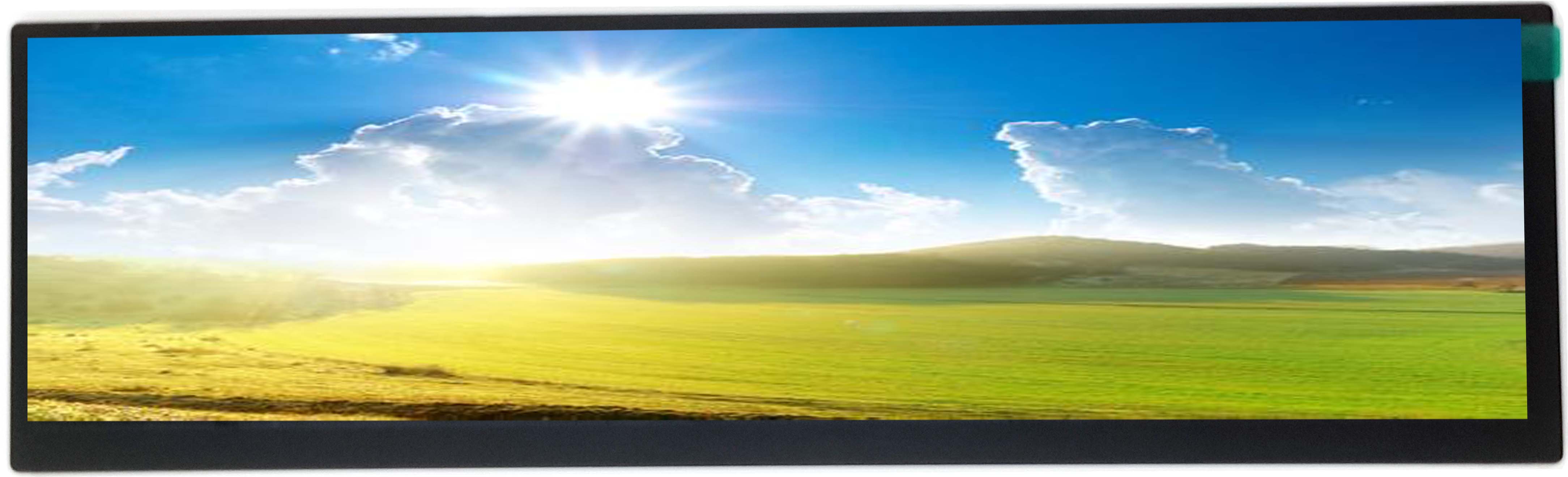

| PartNumber | S088WU02 |
| Brand | CDTECH |
| Size | 8.8 |
| Application | Industrial Stretched Bar LCD |
| Resolution | 1920(RGB)×480, 224PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 600 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | 4S9P |
| Interface | LVDS |
| Panel Brand | CDTECH |
| Panel Size | 8.8" (2/5 cut of 10.1") |
| Display Area | 216.86(W)×54.22(H) mm |
| Outline Size | 229.66(W)×67.5(H) ×4.3(D) mm |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M |
| Frequency | 60Hz |
| Panel Weight | - |
| Signal Interface | LVDS (1 ch, 8-bit) , 40 pins Connector |
| Input Voltage | 3.3/9.89/21.88/-6.8V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -10 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Panel Model | S088WU02 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 221.2(W)×57.84(H) mm |
| Surface | Hard coating |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) |
| Lamp Type | 4S9P WLED , 30K hours , Without Driver |
| Touch Screen | Without |
